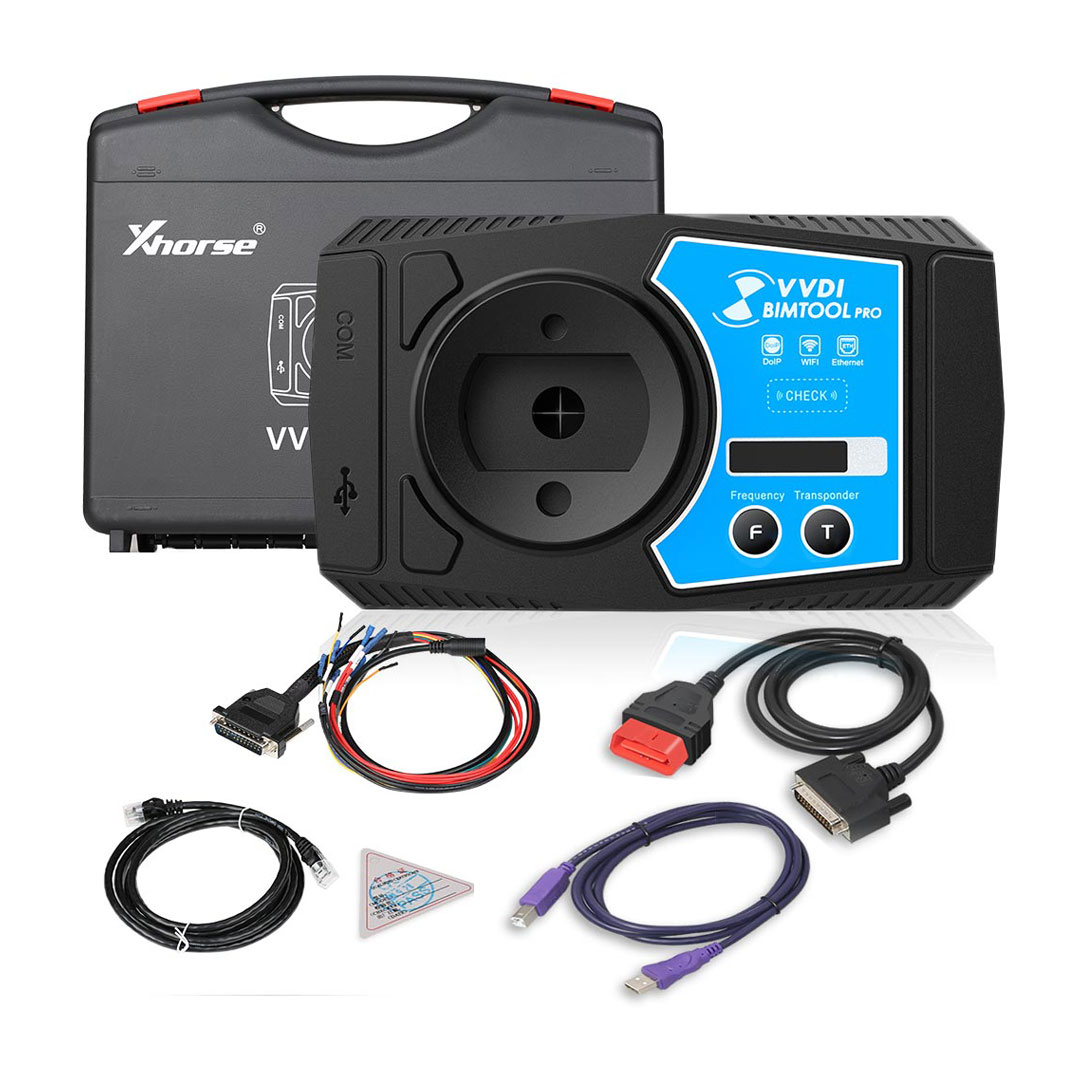

Xhorse VVDI BIMTool BIM BMW Tool Pro Enhanced Updated Edition Device

Xhorse VVDI BIMTool BIM BMW Tool Pro Enhanced Updated Edition Device

Product Description:

Key Programming / ECU Diagnostics Tools From Xhorse with Product Number: MK8508
This Weight Product: 2000g

Specs:

Manufacturer: Xhorse
Condition: New

VVDI BIMTool Pro New Features:

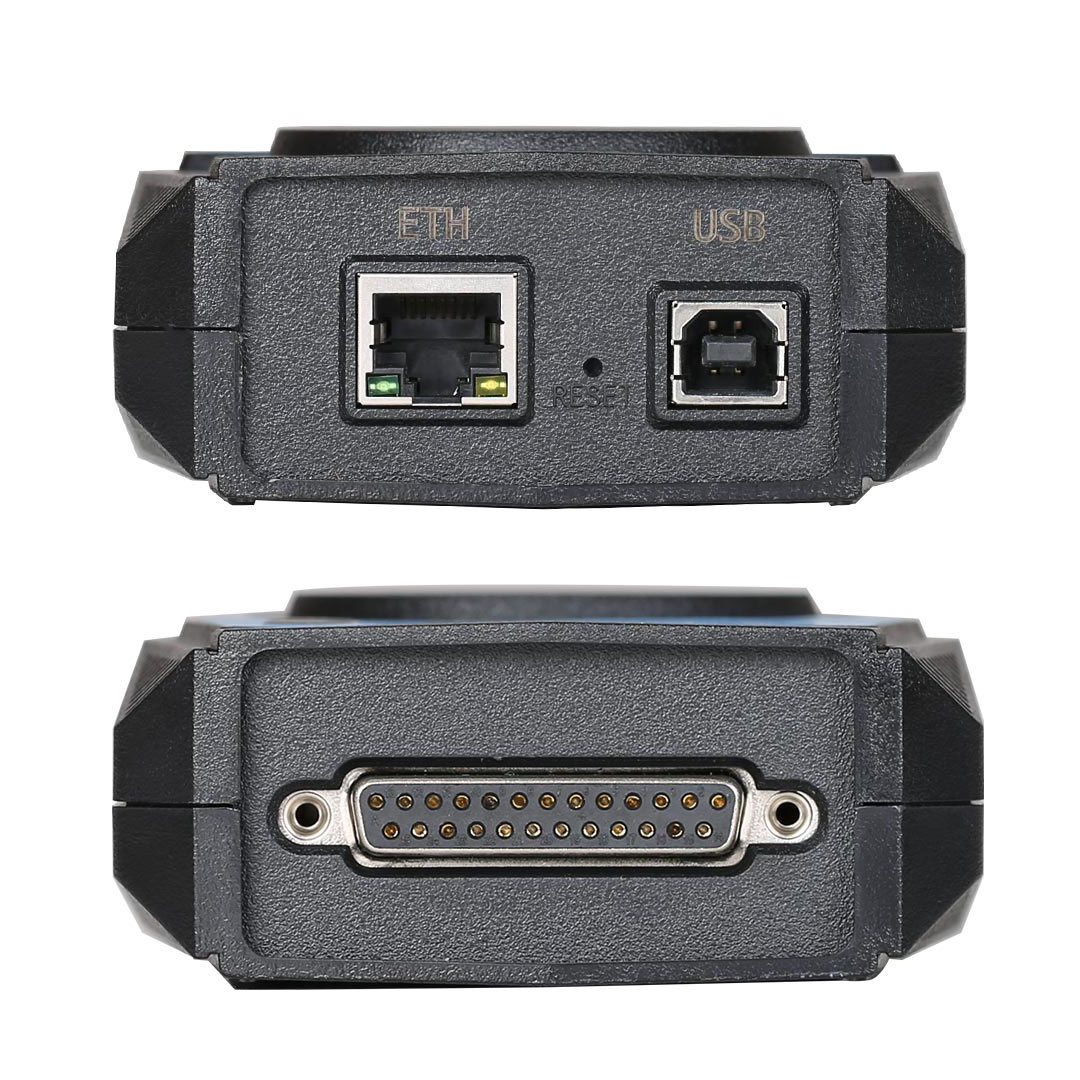

• Add Ethernet port, Support 10/100M programming via Ethernet.
• Support WIFI 802.1b/g, 150Mbps high-speed connection, and WIFI OTA upgrade
• Support DoIP Vehicle/Module Programming
• Support BMW ECU programming (NBT/CIC) (connect via network cable)
• Greatly speed up the F/G Chassis programming (connect via network cable)
• Support BMW E-sys and Rheingold Diagnostic System. Able to replace the specialized devices. (connect via network cable)
• Support directly read ISN data without disassembling the ECU (N13 / N20 / N55 / N63)
• Works on All Windows computer, like win7, win8, win10, no computer operation system limitation.

Note:

1. Don't use the Enternet cable and USB cable at the same time. For key programming,use usb cable,coding use Enternet cable.
2. When connect VVDIBIM device with PC, it will display"Booting" on little screen, after 20 secs it will display as "BMW", then it is connected OK.
3. VVDI BIMTool Pro and VVDI BMW Tool use same software, and some functions in the software will prompt you to use bimtool.

VVDI BIM Tool Pro Functions:

OBD Key Learn: Support CAS1/ CAS2/ CAS3/ CAS3+/ CAS3+ISTAP/ CAS4/ CAS4+ version.

File Key Making: Support CAS1/ CAS2/ CAS3/ CAS3+/ ISTAP/ CAS4/ CAS4+,etc. As for CAS1/ CAS2/ CAS3/ CAS3+ system, support reading EEPROM and synchronous code data.

Support FEM/ BDC System Generating Key, Replacing FEM/ BDC Control Units, Reset Mileage.

Mileage Correction: Support CAS1/ CAS2/ CAS3/ CAS3+/ ISTAP/ CAS4/ CAS4+ odometer correction.

Detail Functions of VVDI BIMTool:

1. E-Series programming, coding, DTCs

• Support autodetect car chassis
• Support scan all car units
• Support calculate all configuration units
• Support read/write car configuration(FA)
• Support input HW/ZB number to programming
• Support calculate default coding from FA
• Support edit detail coding information, change car config
• Support many languages DTC code

2. F-Series programming, coding, DTCs

Support autodetect car chassis

• Support read/write car configuration(FA)
• Support calculate programming files from unit, car, whold database
• Support calculate default coding from FA
• Support edit detail coding information, change car config
• Support detail special function list from coding
• Support many languages DTC code

3. CAS1/CAS2/CAS3/CAS3+/CAS3++ISTAP OBD key learning

• Support read key information, write key inforamtion
• Support key learning
• Support read/write EEPROM
• Support read ECU/gearbox synchronize codes
• Support write ECU/gearbox synchronize codes
• Support synchronize ECU and CAS
• Support synchronize CAS and ELV
• Support read ISN via OBDII
• Support reset KM via OBDII
• Support disable key/enable key

4. CAS4(1L15Y)/CAS4+(5M48H) OBD key learning:

• Support read CAS encrypt key via OBDII
• Support key learning via programmer and via ignition switch
• Support disable key/enable key
• Support erase key position
• Support reset KM via OBDII
• Support read ISN via OBDII
• Support backup/restore coding
• Support update original CAS4 file

5. FEM/BDC OBD key learning:

• Support read FEM/BDC encrypt key via OBDII
• Support key learning via programmer and via ignition switch
• Support disable key/enable key
• Support erase key position
• Support reset KM via OBDII
• Support read ISN via OBDII
• Support backup/restore coding
• Support exchange used FEM/BDC
• Support close/open transport mode
• Support reset ECU lock
• Support switch on ignition without working key

6. CAS EEPROM dump key learning:

• Support EWS1, EWS2, EWS3, EWS4, CAS1(0K50E), CAS2(2K79X), CAS3(0L01Y), CAS3+(0L15Y), CAS3++ISTAP(0L15Y, 0M23S)
• Support prepare dealer key via programmer
• Support disable key/enable key
• Support read ISN from working key

7. 8HP Gearbox renew:

• Support clear ISN in 8HP gearbox
• Support backup/restore coding
• Support reset adaptation information

8. Read synchronize code from E-Series ECU: Support MEV9N46L, MSV70, MSS60, MS450, N62 etc

9. Read E-Series/F-Series ECU ISN via OBDII

• Support MSV80, MSV801, MSD80, MSD81, MSD802, MSD812, MSD851
• Support MED17xx/MVD17xx/MEVD17xx/MV1722
• Support MED172/MEV17N46/ME17N45
• Support MEVD172Y/MEVD172/MEVD1725/B38/X63TU

10. Support exchange ECU and CAS:

• Support write ECU ISN via OBDII
• Support write ECU VIN via OBDII
• Support change ECU ISN and VIN with EEPROM dump
• Support chagne CAS1/CAS2/CAS3/CAS4 ISN and VIN with EEPROM dump

11. CAS repair(OBD&EEPROM)

• Support repair ISTAP CAS
• Support repair CAS EEPROM(Service mode EEPROM), you can start engine after repair the file(CAS1,CAS2,CAS3,CAS3+,CAS3++ISTAP)

12. CAS3+/CAS4+ lost all dump file support restore ISN and VIN

• Support CAS3+(1L15Y) encrypt version
• Support CAS3++(ISTAP) version
• Support CAS4+(5M48H) version

13. File KM calibration

• Support EWS1, EWS2, EWS3, EWS4
• Support CAS1(0K50E), CAS2(2K79X), CAS3(0L01Y), CAS3+(0L15Y, 0M23S)
• Support CAS4(1L15Y), CAS4(5M48H, 1N35H)
• Support E-Series dashboard EEPROM(M35080)
• Support F-Series dashboard EEPROM(35160, 35128)
• Unlock HITAG2 key: Support lock hitag2 key made from BMW TOOL via programmer

• EWS3/EWS4 can read EEPROM, write EEPROM via CAS PLUG
