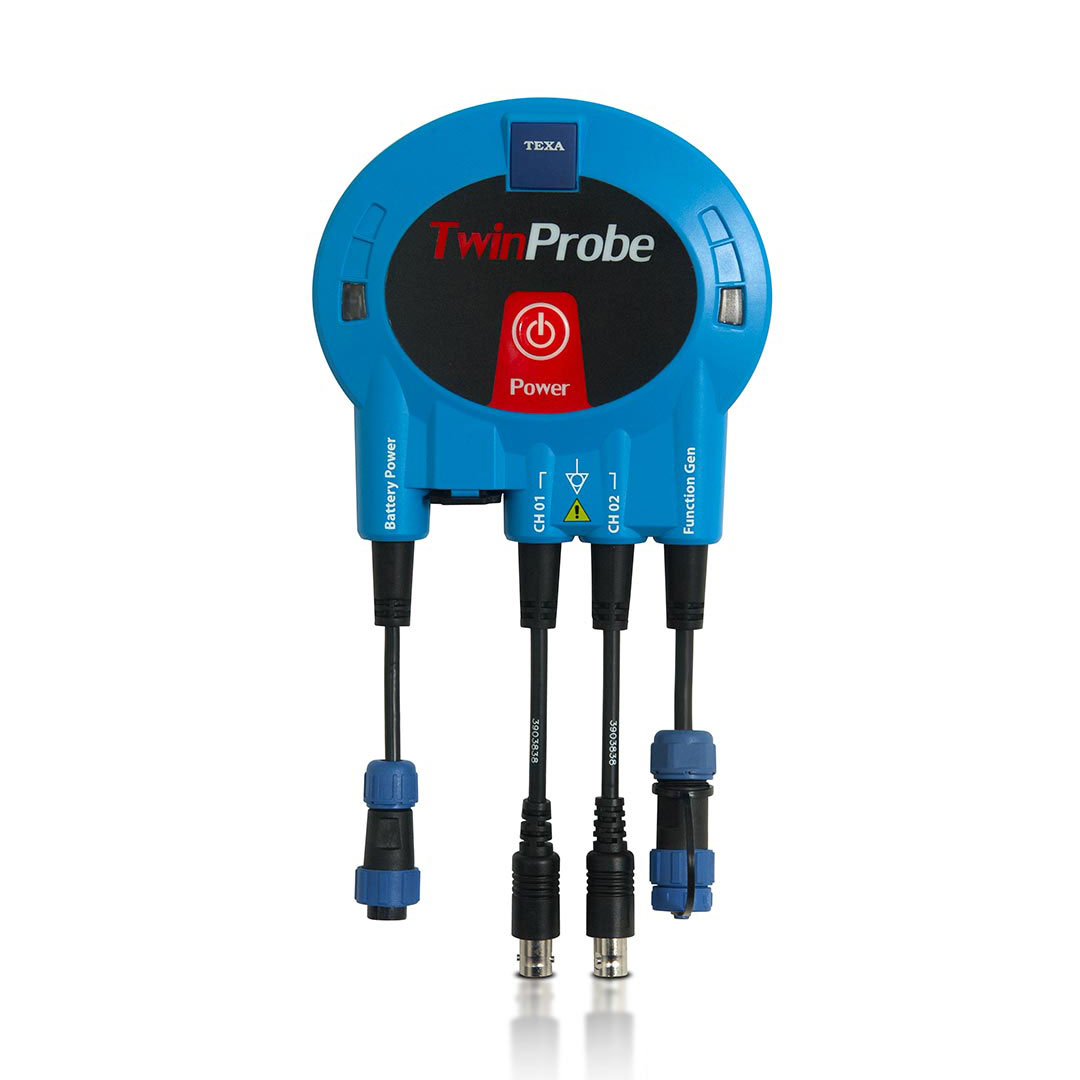

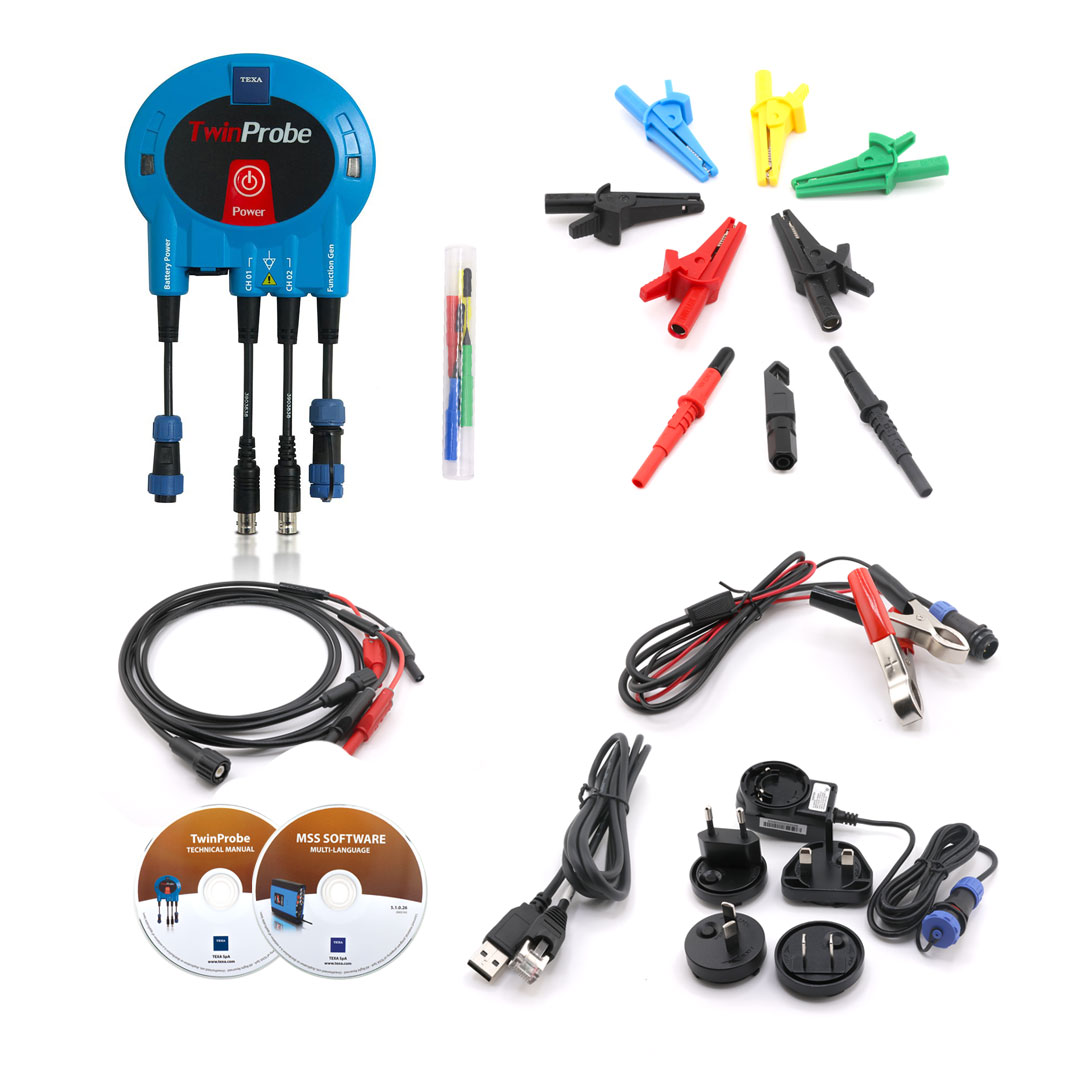

Texa TwinProbe Oscilloscope and Signal Generator

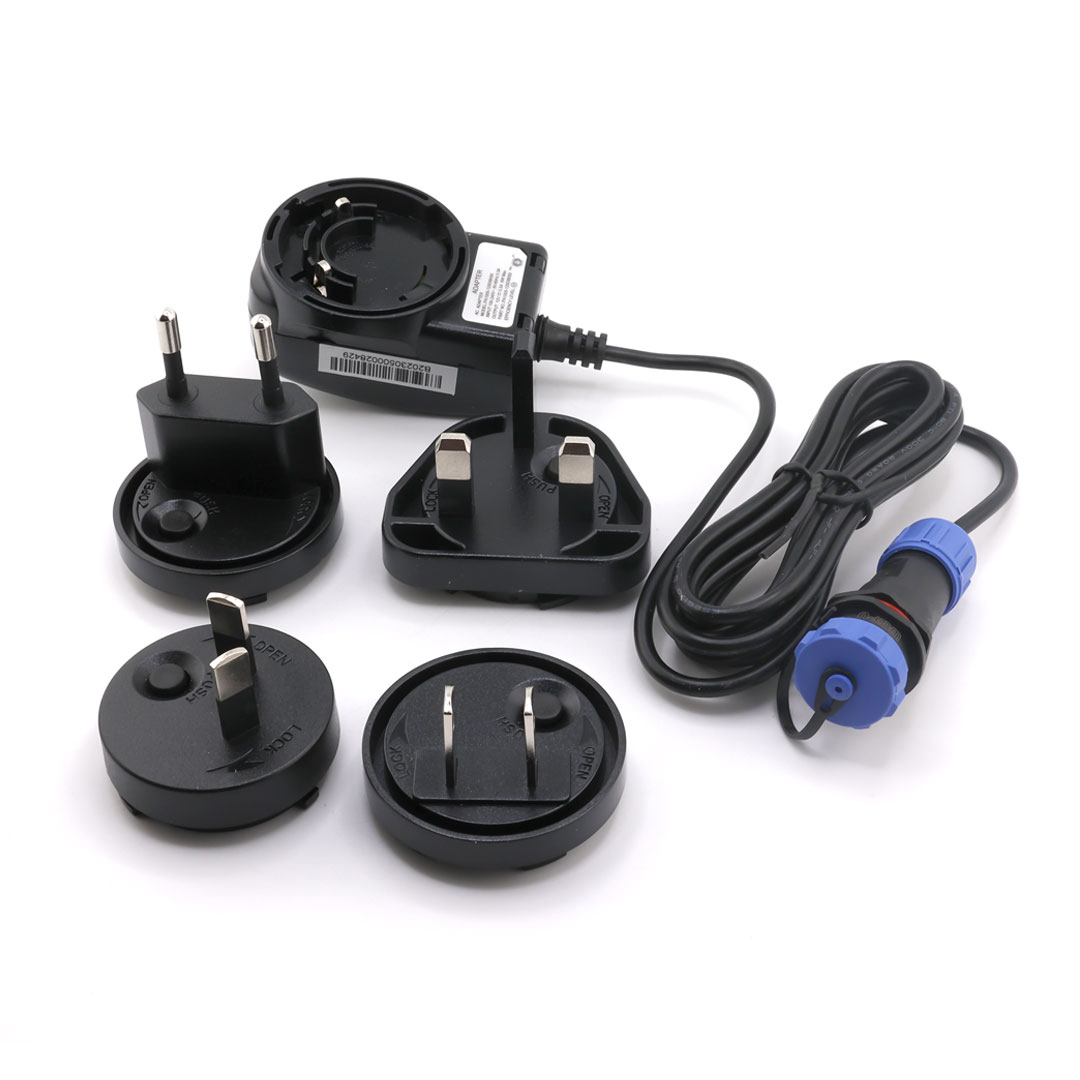

POWER SUPPLY
8 V – 35 V DC max

STAND-BY CONSUMPTION
150 mA at 12 V

CONSUMPTION DURING BATTERY CHARGE IN OSCILLOSCOPE MODE AND 2 ACTIVE CHANNELS
480 mA at 12 V

INTERNAL BATTERY DURATION IN OSCILLOSCOPE MODE AND 2 ACTIVE CHANNELS
1h and 45 mins approximately

ENVIRONMENTAL
Operational temperature: 0 ÷ +45°C
Storage temperature: – 20 °C ÷ 60 °C
Operating relative humidity: 10% – 80%

DIMENSIONS WITHOUT CABLES (WITH CABLES)
125 x 130 x 27 mm (135 x 130 x 27 mm)

WEIGHT
460 g

OSCILLOSCOPE:

CHANNEL NUMBERS
2 analogue (CH01, CH02)

HOST CONNECTION

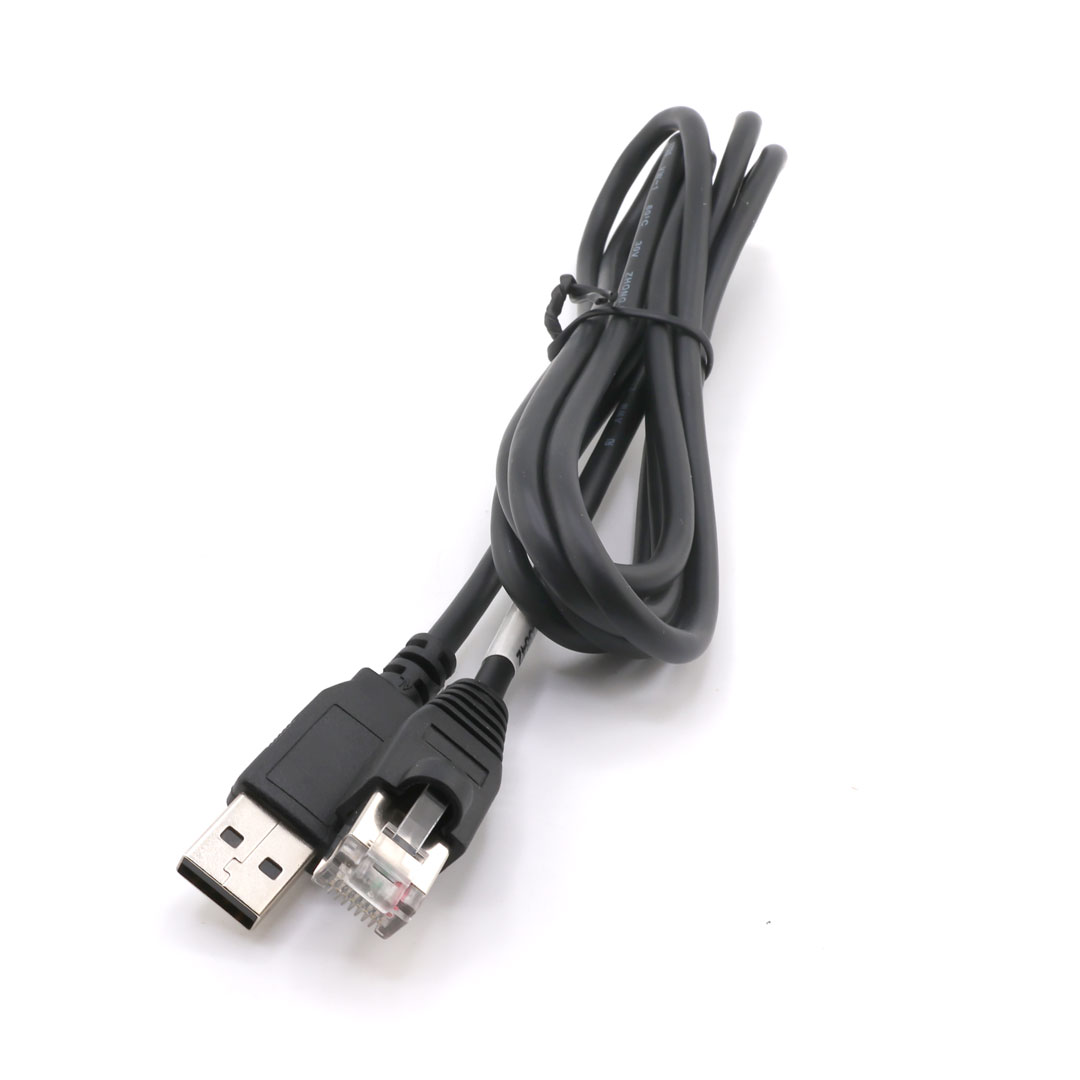

Via USB2, USB1 or Wireless Bluetooth

TRIGGER
CH01 o CH02

A/D CONVERSION
2 10-bit converters.
40 MS/s with one active channel.
20 MS/s for channel with 2 active channels

VIEWING MODE
Normal, Auto, Single shot

COMMON MODE
AC, DC

MAX INPUT VOLTAGE
± 200 V

ADDITIONAL FUNCTIONS
Trigger delay, frequency calculation, Vmedia, Vmax, Vmin, Period, Setting scale for amperometric clamps

SIGNAL GENERATOR:

PWM CURRENT DRIVE
Maximum continuous current: 5 A at 12 V
Maximum PWM frequency: 50 kHz
Operating voltage: 5÷30 V
Duty Cycle Resolution: 1%
Frequency resolution: 0,1 Hz

PWM 5 V
Maximum continuous OUTPUT
current: 20 mA
Maximum PWM frequency: 50 kHz
OUTPUT voltage: 0-5 V ± 5%
Duty Cycle Resolution: 1%
Frequency resolution: 0,1 Hz
