Texa NAVIGATOR TXT MULTIHUB 2 Diagnostic Interface

Be the first to review this product

Software Activation Must Be Purchased & A TEXA Display Interface / PC D195A0

$2,250.00

Category: Diagnostic Tools

Manufacturer: Texa

Availability: In stock

SKU: DIA-TEX-25733

GTIN: 3841634162743

Qty:

Products specifications

Products specifications

Attribute name	Attribute value
Manufacturer	Texa
Condition	New

Full Description:

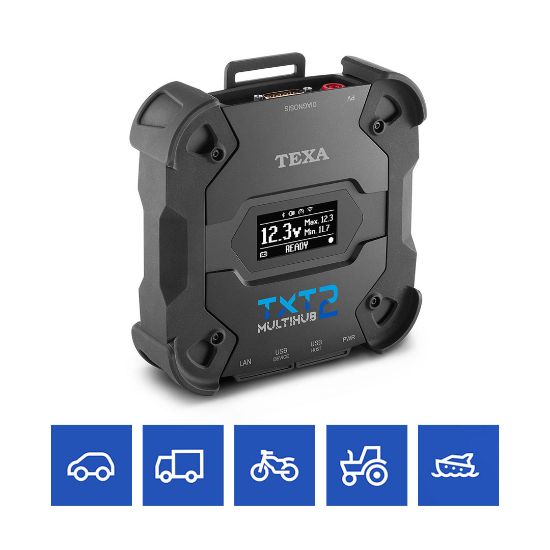

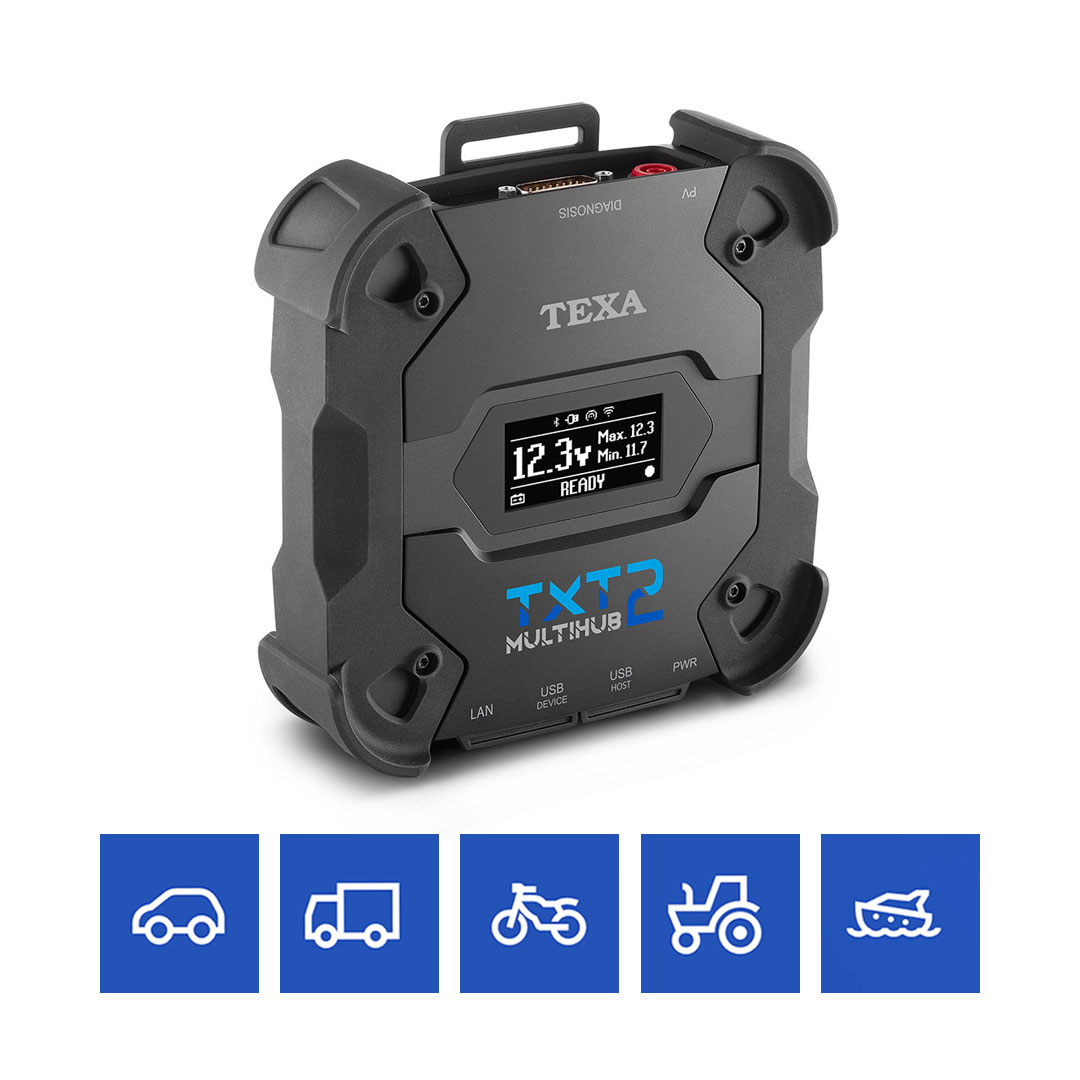

Texa NAVIGATOR TXT MULTIHUB 2 Diagnostic Interface

Product Description:

New Texa NAVIGATOR TXT MULTIHUB 2 Diagnostic Interface The Top-of-the-range Solution Versatile, Quick, Intuitive, In Any Situation

Diagnostic Tools From Texa with Product Number: MK25733
This Weight Product: 1000g

Multibrand diagnostics by TEXA

In recent years, the diffusion of electronics on board vehicles has been exponential and has reached a very high level of complexity. Today repair specialists must be capable of working at their best on different types of vehicles, with different diagnostic protocols and multiple connection modes.

In such a context, TEXA developed TXT MULTIHUB 2, an extremely versatile vehicle interface that easily adapts to maintenance activities making them quick and intuitive, in any situation.

It is a technologically advanced solution, rich in unique technical and constructive features, such as: the possibility to operate in 5 environments, the presence of a 2.42-inch, white-backlit display, the IP53 certified rugged design, an intelligent connectivity guaranteed by the Linux operating system, the management of CAN-FD, DoIP, Pass-Thru protocols, remote diagnosis and much more.

A unique tool, for all the environments

TXT MULTIHUB 2 is the only diagnostic tool capable of intervening on cars, heavy-duty vehicles, motorcycles, boats, agricultural and construction vehicles. At all times it guarantees unparalleled performances so to complete operations the best way possible, with maximum customer satisfaction.

Great usability, thanks to the built-in display

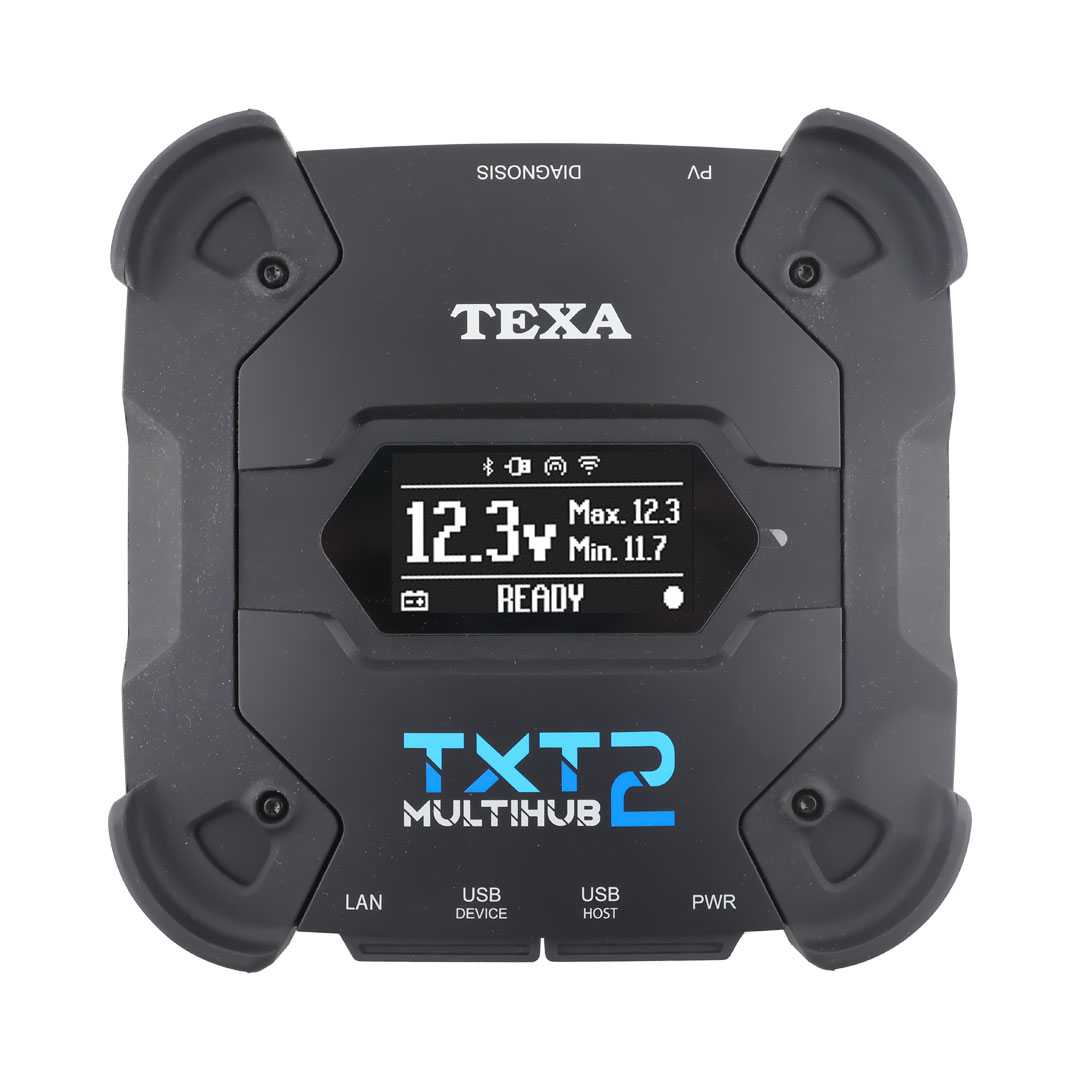

TXT MULTIHUB 2 is equipped with a practical 2.42-inch, white-backlit display that gives it great usability and the possibility to view the information based on three types of messages:

communication mode with the display unit
charging voltage of the battery in the vehicle it is connected to
operating status that can be standard diagnosis, DoIP Wi-Fi, DoIP Ethernet, Pass-Thru, CAN-FD.

Furthermore, it allows having constant control on the tool’s operation: it reproduces more than 40 messages that provide technicians with all the information they need during diagnostic operations.

Battery voltage at a glance

TXT MULTIHUB 2 indicates in the display, in real time, the voltage of the battery in the vehicle it is connected to. This is essential in order to carry out certain diagnostic operations such as an adjustment.

Robust, practical, handy a “rugged tool” perfect in any situation

TXT MULTIHUB 2 is equipped with a special reinforced body with anti-shock corners. Its certified protection level is IP53, therefore it resists splashes of water and dust.

Furthermore, the military standard MIL-STD 810G transit drop test allows it to absorb impacts and falls. All these features allow the tool to give its best in any operating situation.

TXT MULTIHUB 2 is also very handy and nice to see thanks to its special “rugged design” and to the aesthetic care it was built with.

"No limits" connectivity

a true MULTIHUB 2

The interface uses an advanced connectivity; it allows mechanics to work on any type of vehicle that enters the workshop with great flexibility and rapidity.

The tool communicates with the display unit through:

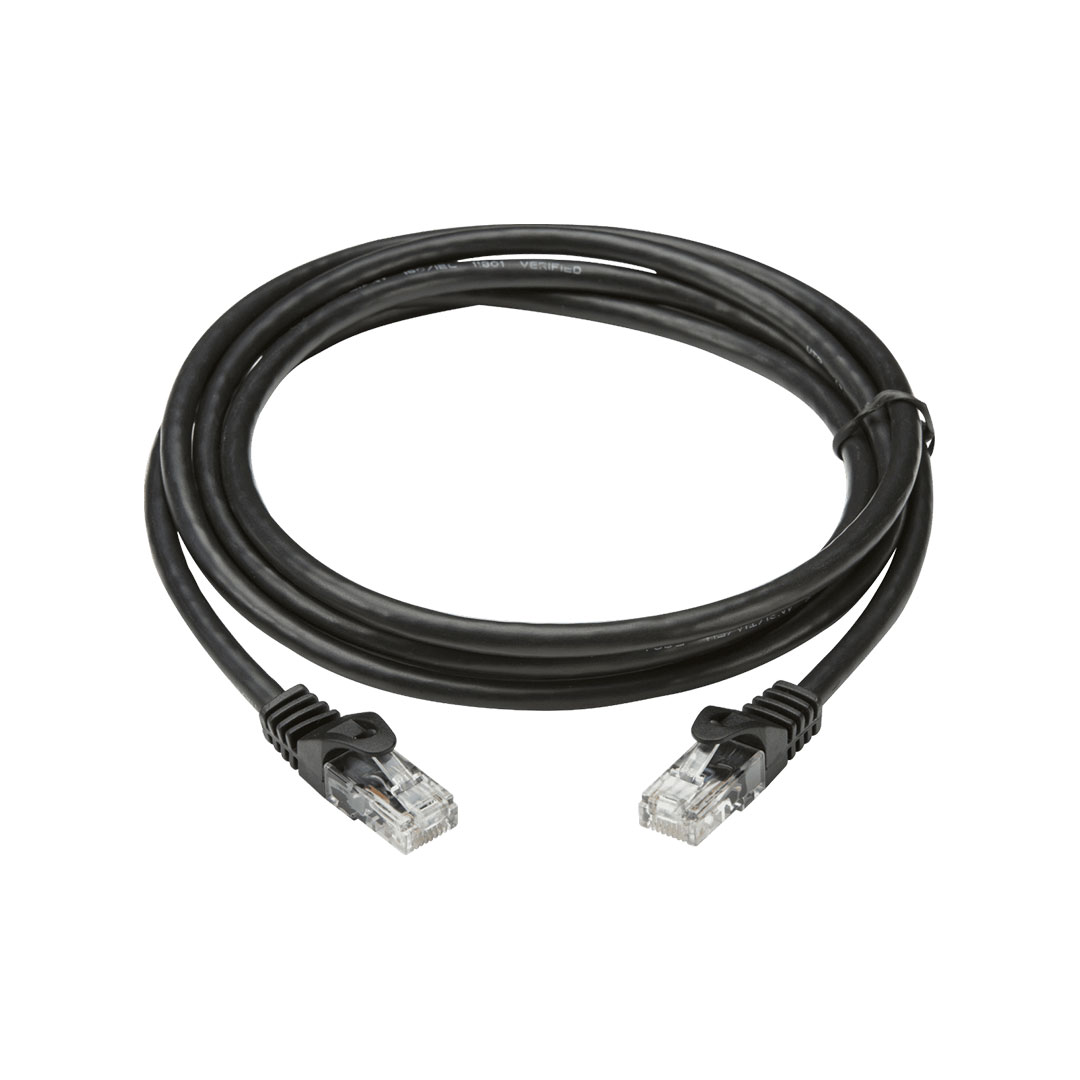

Wi-Fi module for the diagnostic operations that use standard CAN, CAN-FD and DoIP.	Network cable (Ethernet) reserved for DoIP operations (ISO 13400).	USB socket for all types of diagnosis, including the Pass-Thru (SAE J2534-1 and SAE J2534-2).	Bluetooth module for conventional diagnoses.

Moreover, MULTIHUB 2 enables the remote diagnosis,
allowing users to carry out an extensive range of operations thanks to expert personnel that guarantees specialised support.

Built-in DoIP, even wireless

TXT MULTIHUB 2 allows easily performing the diagnosis on vehicles equipped with DoIP (Diagnostic over Internet Protocol) technology, even in Wi-Fi. This standard, developed to manage the massive presence of electronics in vehicles and the impressive mass of elaborated diagnostic data, requires using a connection based on the IP protocol.

Pass-Thru, direct access to the manufacturers’ data

TXT MULTIHUB 2, as already stated, is ready to operate in any configuration, even passing from a standard diagnosis to Pass-Thru in a completely automatic way. It is compliant with the SAE J2534-1 and SAE J2534-2 regulations, therefore it can connect to a vehicle and provide direct access to maintenance and diagnostic data made available by the vehicle manufactures and essential, for example, to update the software in one or more control units.

CAN FD, for high-intensity data transmission

The CAN FD (Controller Area Network Flexible Data-Rate) protocol allows transferring information, even largesized, five times quicker. With TXT MULTIHUB 2 even managing this communication standard (4 channels) is easy and intuitive.

Technical Specifications

Main processor:
• Type: iMX6 1 GHz
• DDR3L SDRAM: 512 MByte
• Mass Storage: eMMC 8 GByte

Coprocessor:
• Type: STM32H735IGK6 550MHz
• RAM: 2 MByte SRAM, 32 MByte SDRAM
• Flash: 2 MByte
Power supply connector: PWR: 2.1 DC jack

Power supply: 12 – 24 V (direct voltage)
(from vehicle battery via OBD connector or specific
wirings)
Consumption: 1 A @12 V
0.5 A @24 V

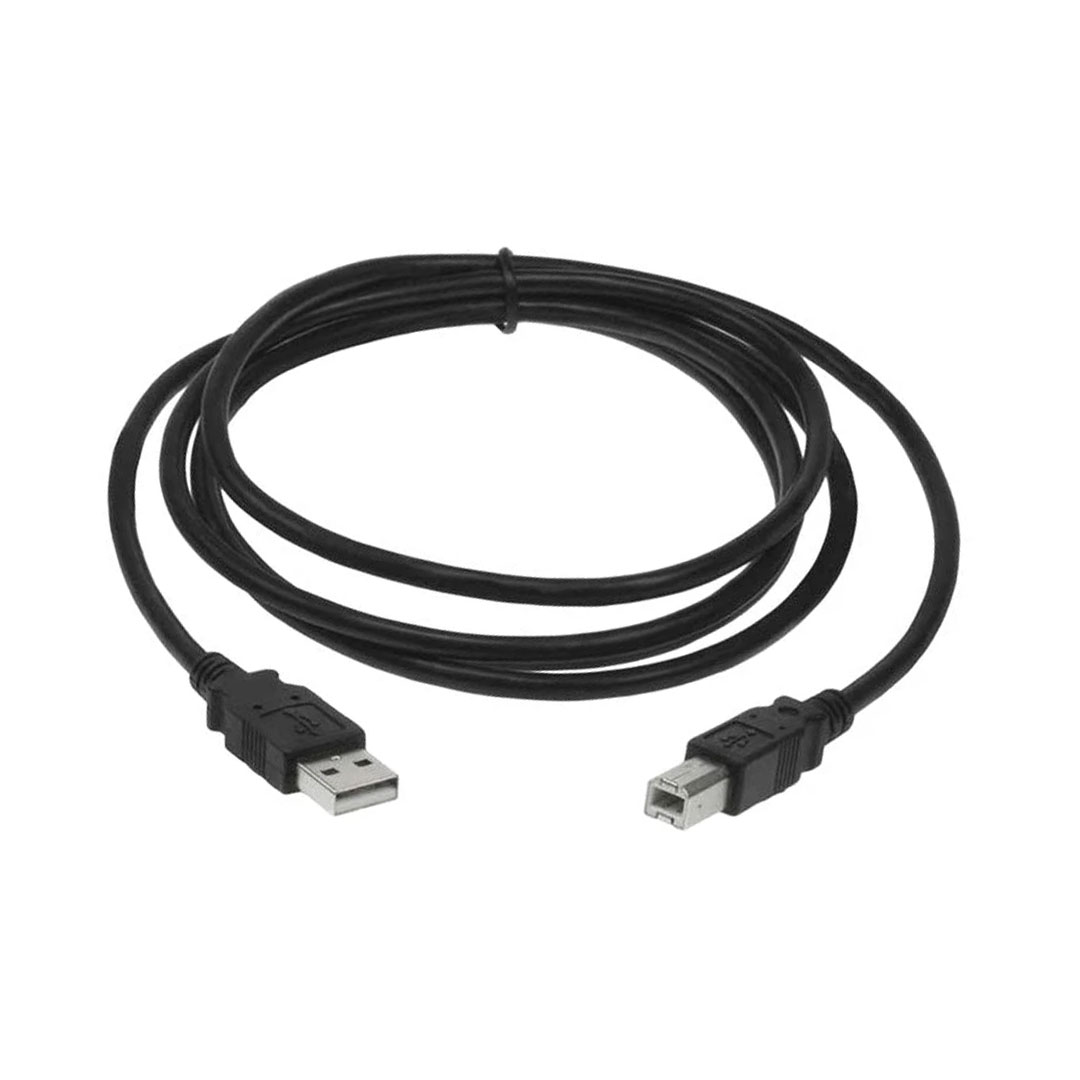

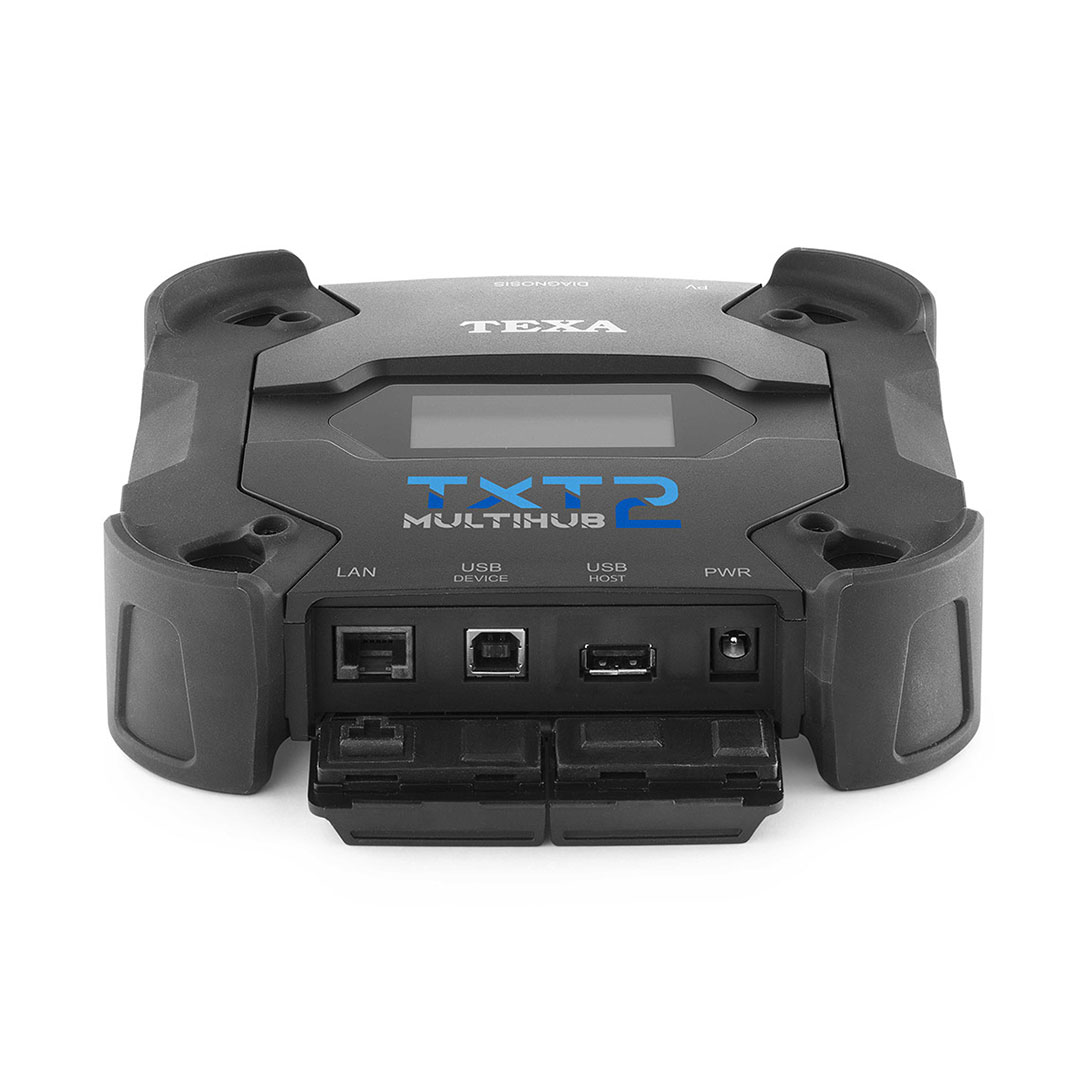

USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)

Bluetooth communication: BDR/EDR/LE1M
Wi-Fi communication: WiFi IEEE 802.11 b/g/n20 (2412 ~ 2462 MHz)

Operational band: 2400 ~ 2483,5 MHz
Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)

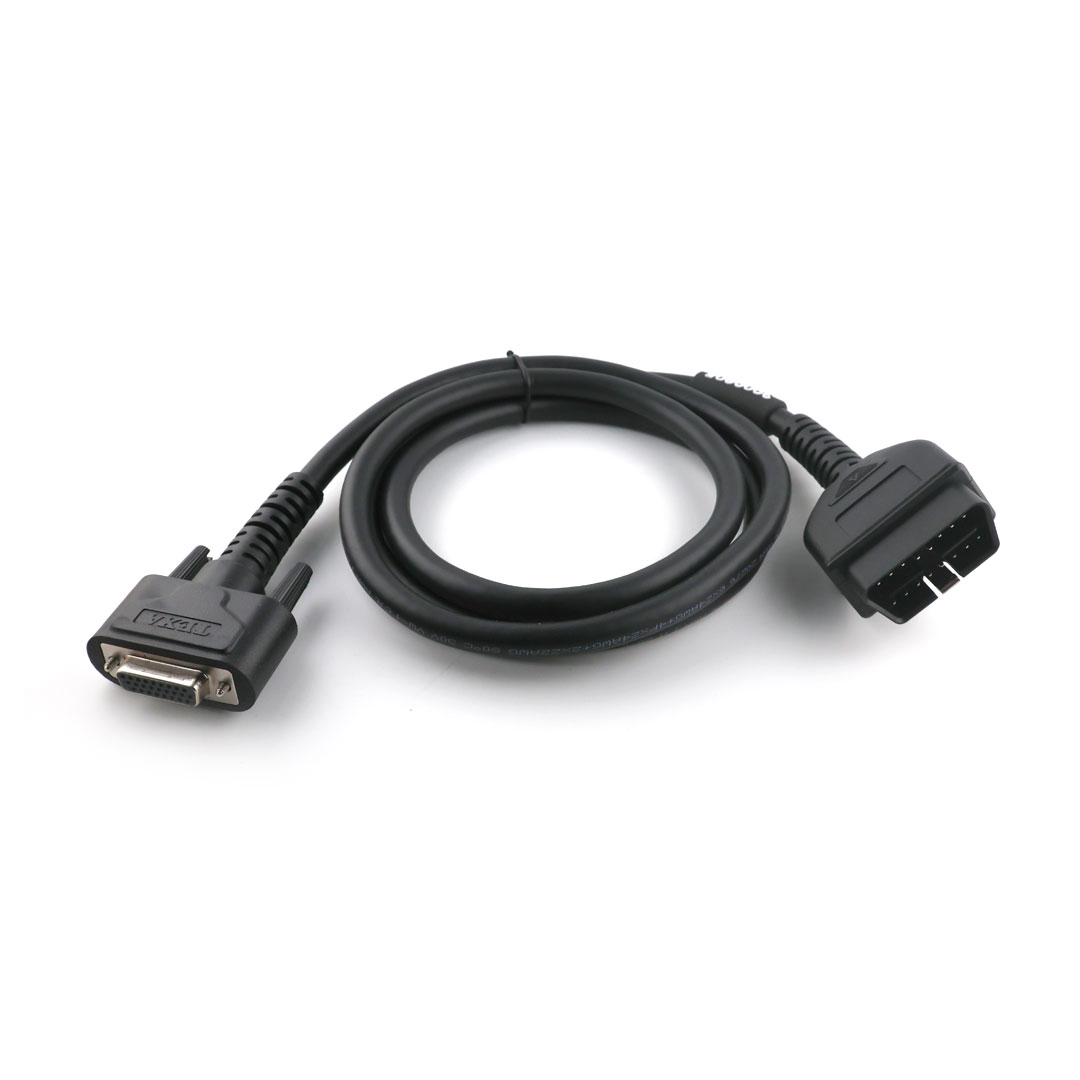

Diagnostic connectors: DIAGNOSIS: DSUB-26HD (ISO 22900-1)

Electronic switch: 2-way, 13 independent positions
Control units reprogramming connector: PV (SAE J2534-1)

Supported protocols:
• Blink codes
• K, L (with 100 mA current protection), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• CAN_FD 11898-2:2016 4 channels
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1
• SAE J1708

User interface: Display OLED 64×128 dot

Operating temperature: 0 ÷ 50 °C
Storage temperature: – 20 ÷ 60 °C
Operating moisture: 10% ÷ 80% without condensation

Weight: 600 g
IP protection level: IP53 (With properly closed protective caps)

Directives:
• RED 2014/53/EU
• RoHS 2011/65/EU and Delegated Directive 2015/863/EU
Electromagnetic compatibility:
• ETSI EN 301 489-1
• ETSI EN 301 489-17
Radio systems: ETSI EN 300 328
Electrical safety: EN 62368
