Texa NAVIGATOR TXB ZERO MARINE Kit

Be the first to review this product

Marine Software Included D18790

$1,300.00

Category: Diagnostic Tools

Manufacturer: Texa

Availability: In stock

SKU: DIA-TEX-25734

GTIN: 3841634162750

Qty:

Products specifications

Products specifications

Attribute name	Attribute value
Manufacturer	Texa
Condition	New

Full Description:

Texa NAVIGATOR TXB ZERO MARINE Kit

Product Description:

New Texa NAVIGATOR TXB ZERO MARINE A Diagnostic Interface Dedicated To The Diagnosis On Outboard Engines And Personal Watercrafts

Diagnostic Tools From Texa with Product Number: MK25734
This Weight Product: 500g

Note: Only Support IDC6 Plus MARINE Softwares

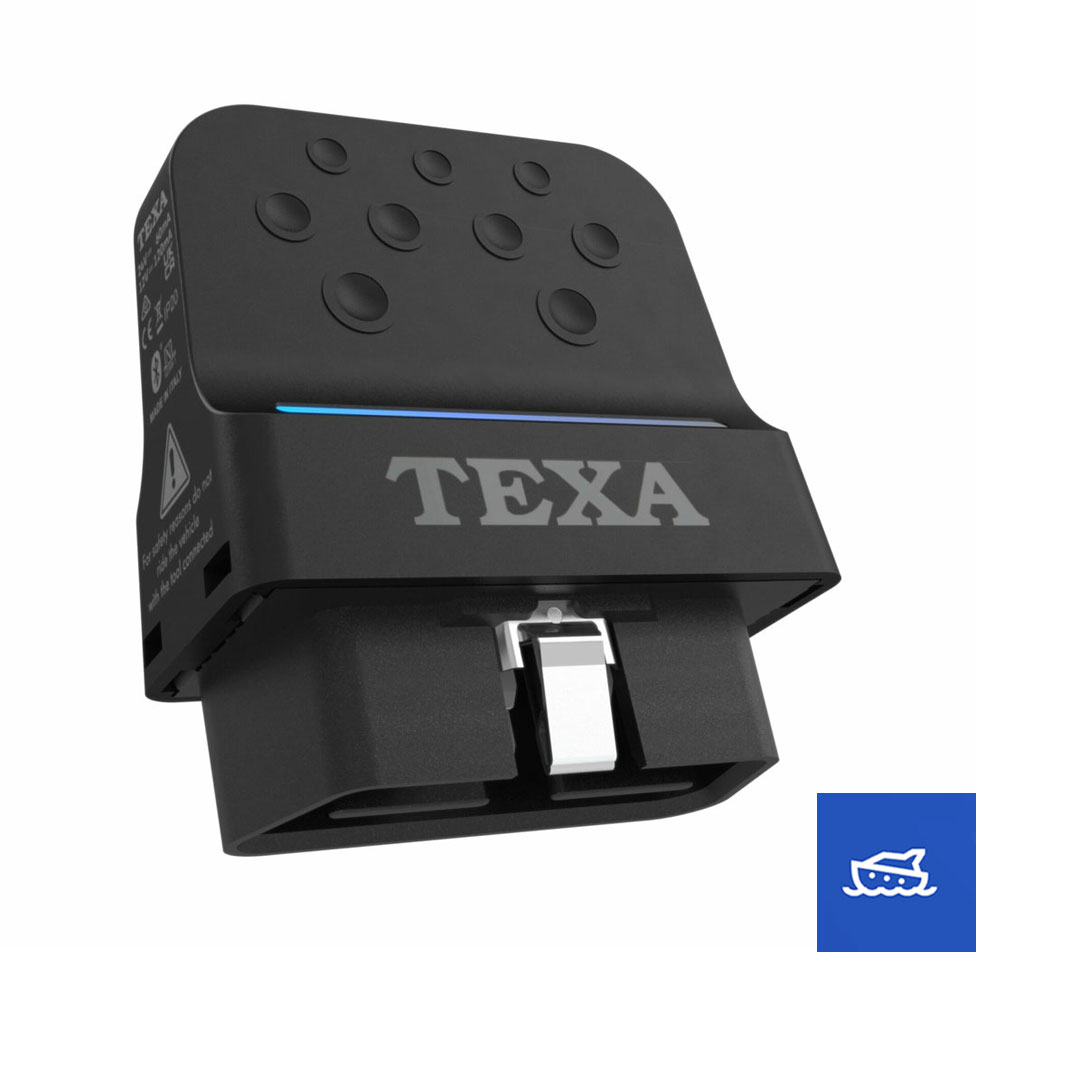

Navigator TXB Zero

A diagnostic interface dedicated to the diagnosis on outboard engines and personal watercrafts.

Its design aims at ensuring compatibility with a wide range of engines, offering a versatile and flexible solution for the repair and maintenance needs of specialised technicians. Lastly, it integrates an advanced technology that allows recording the diagnostic tests also while moving*.

A custom-developed diagnostic software

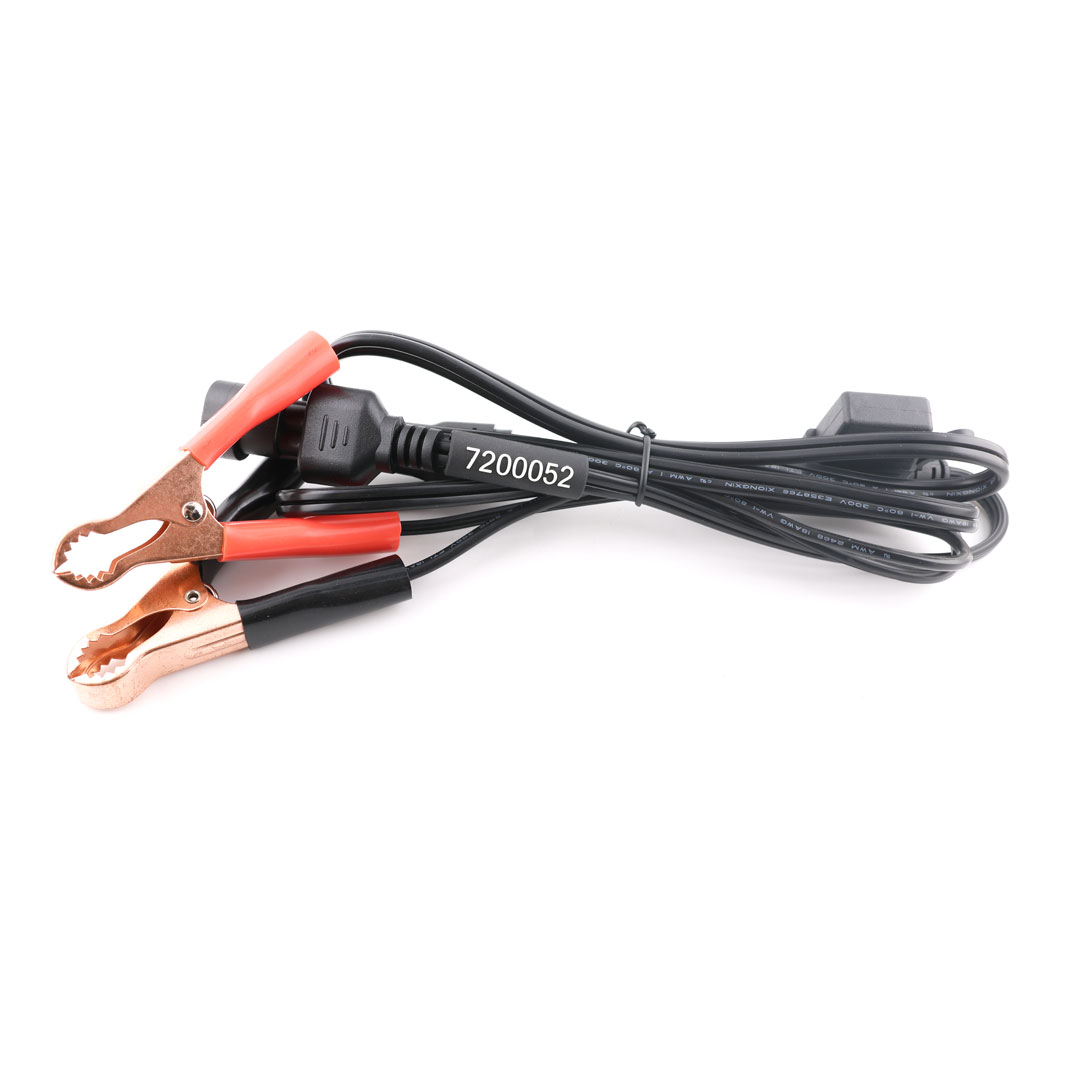

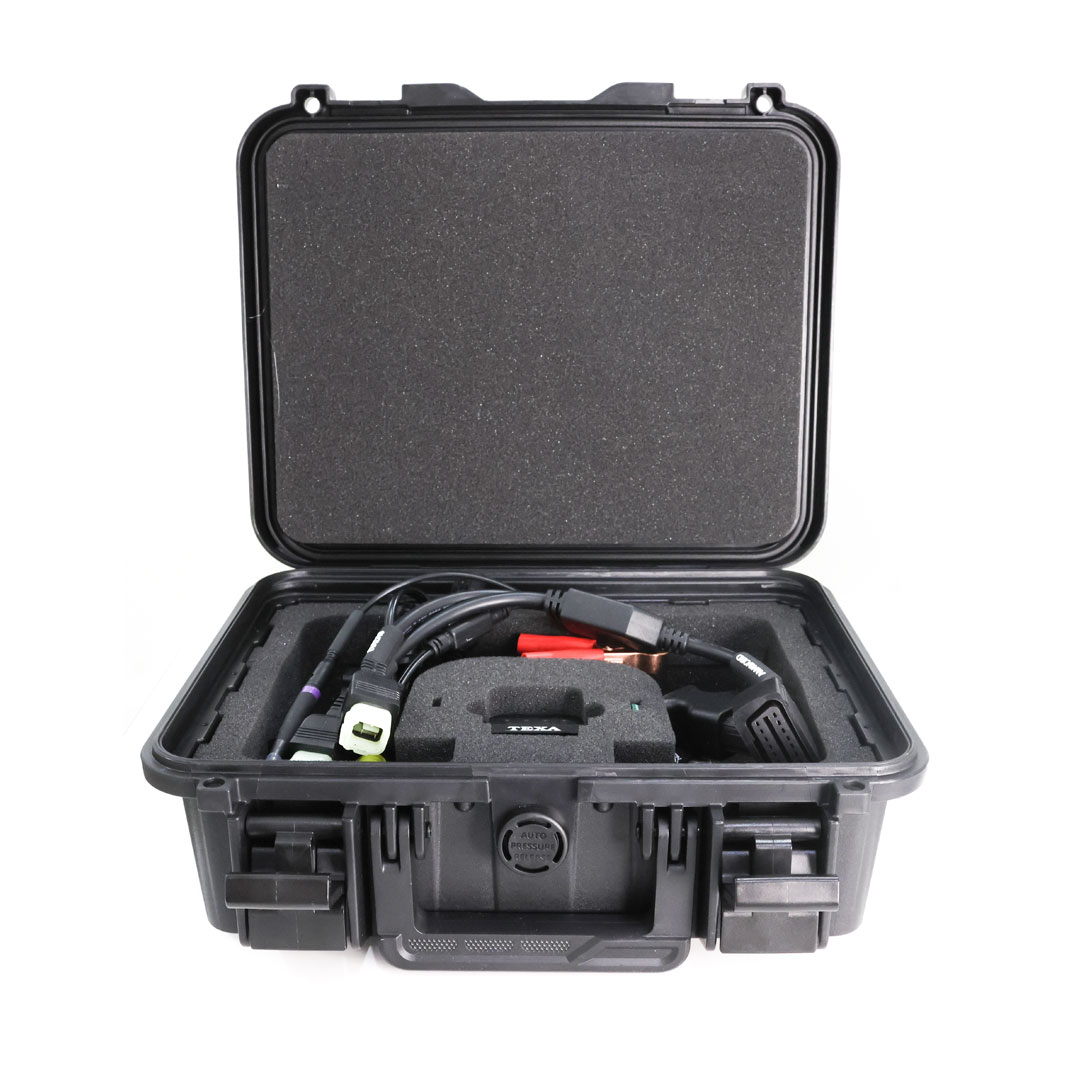

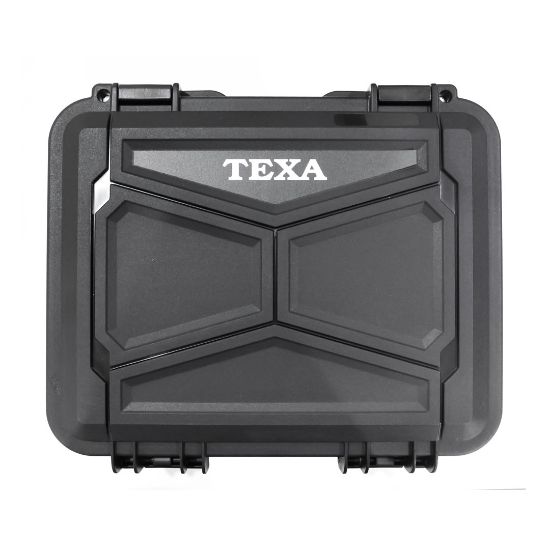

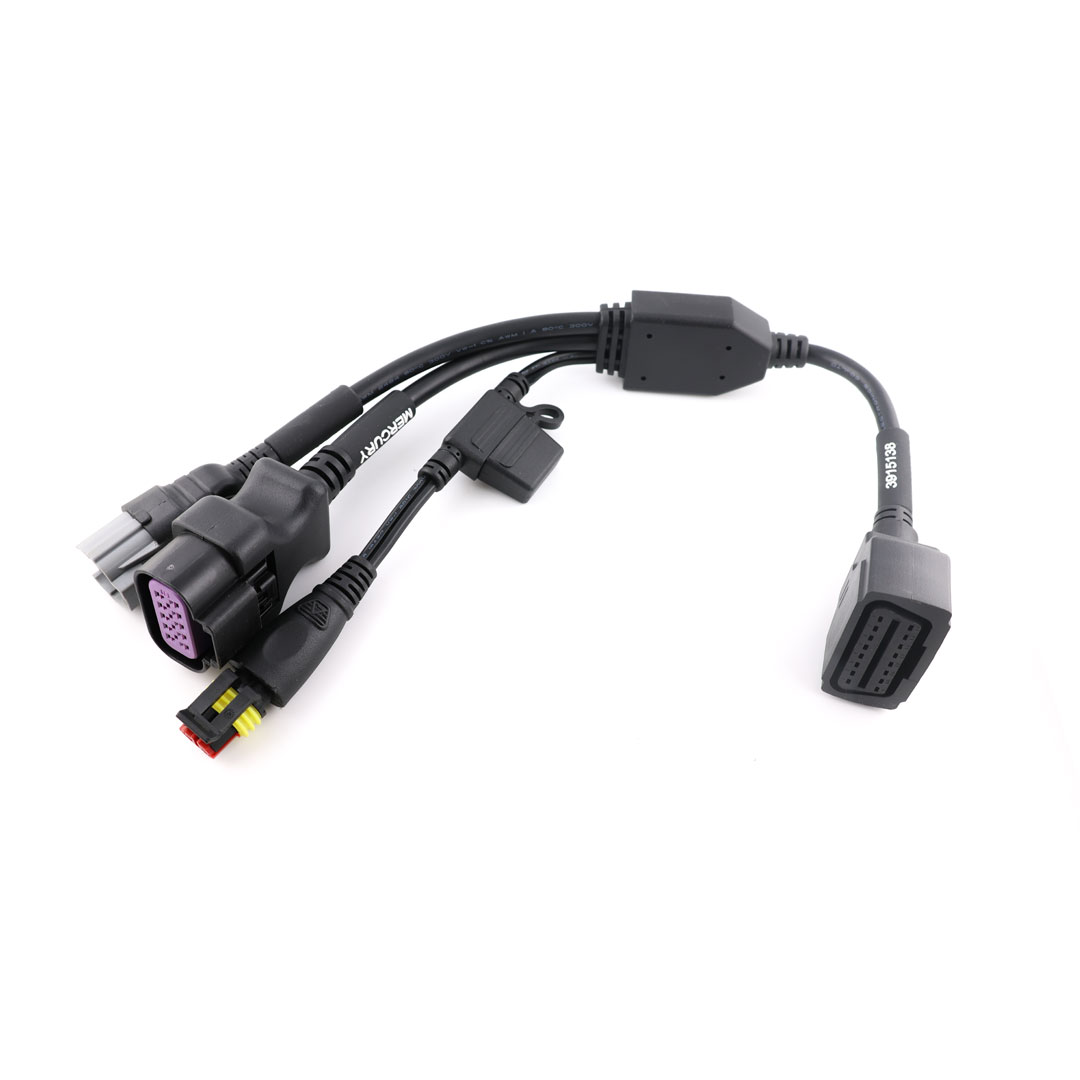

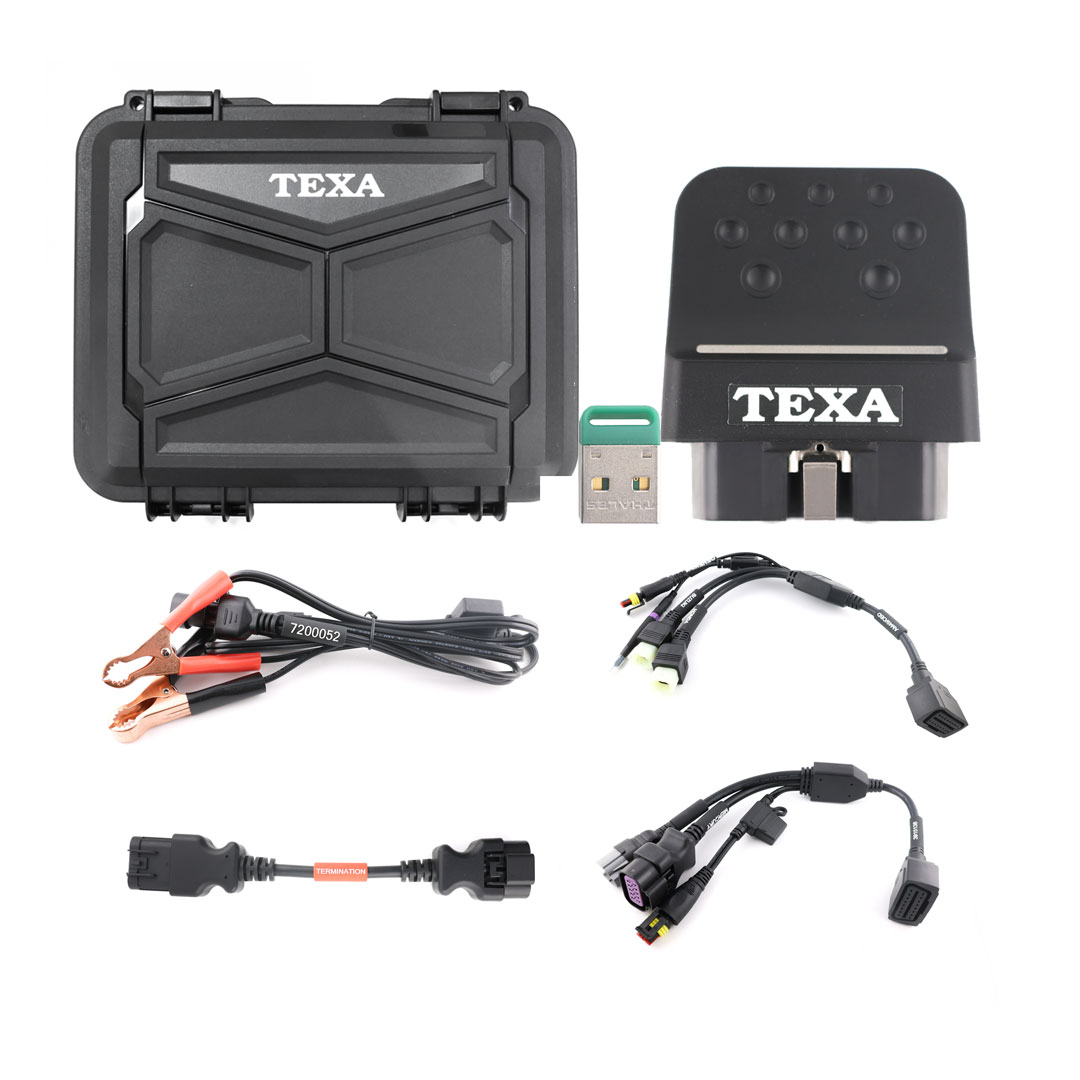

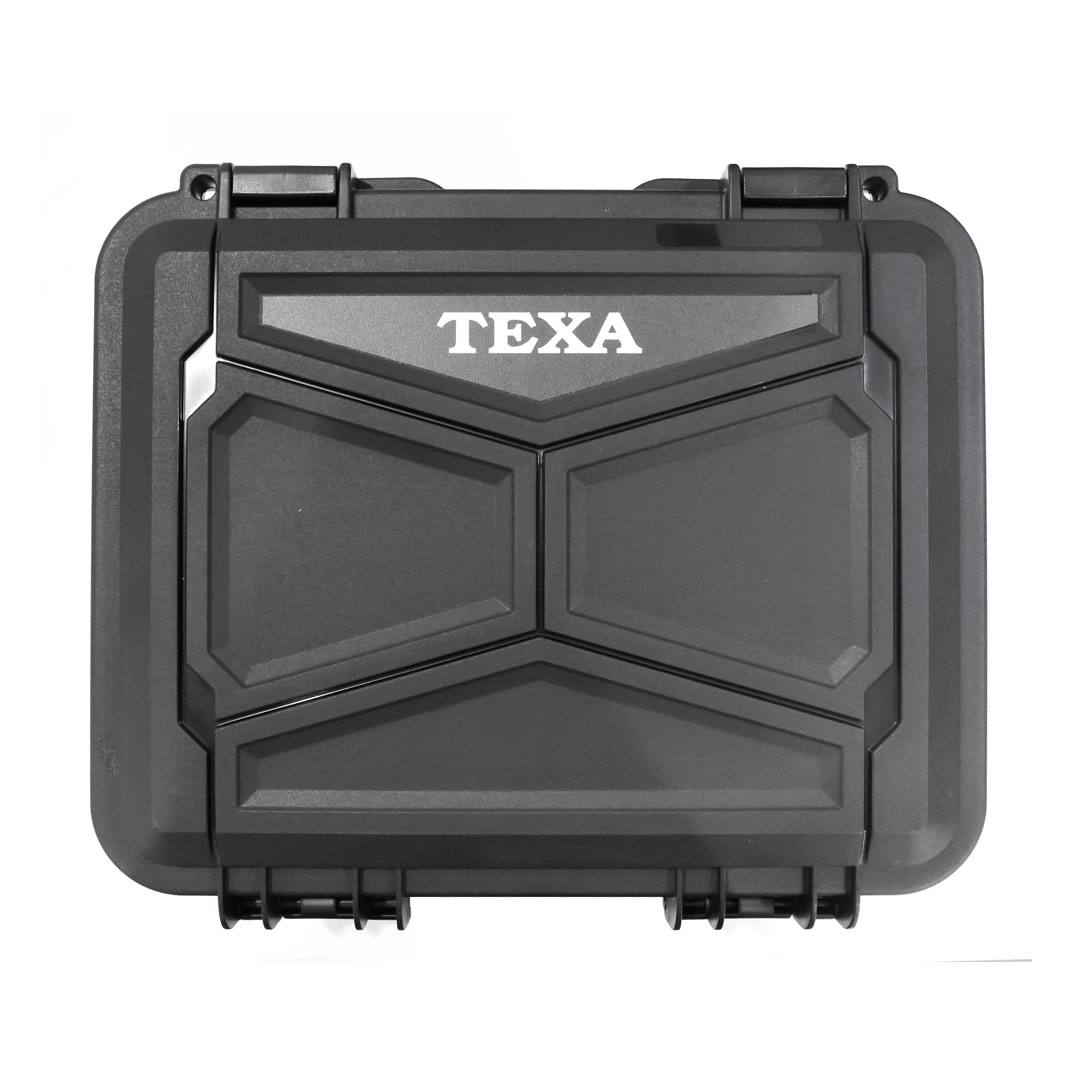

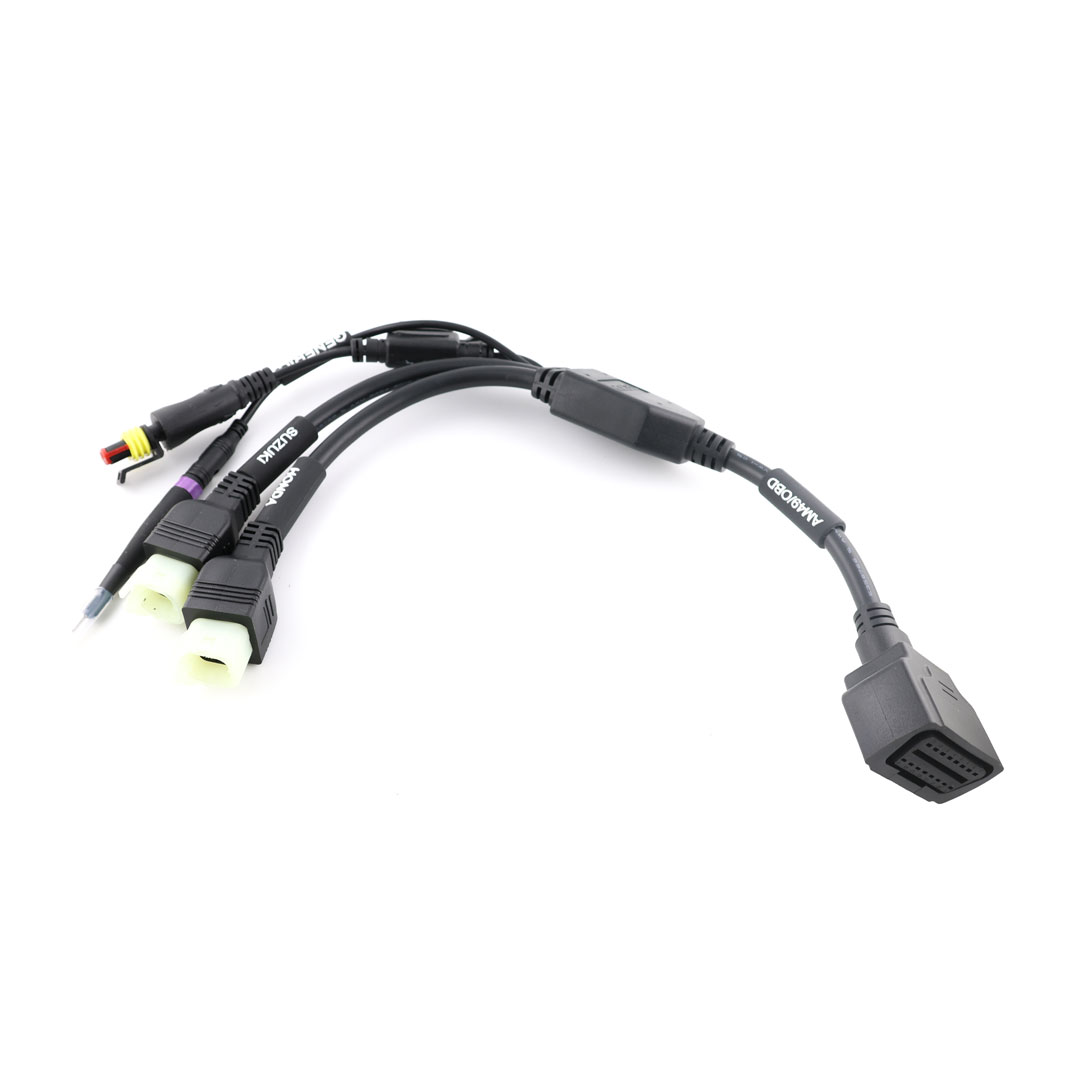

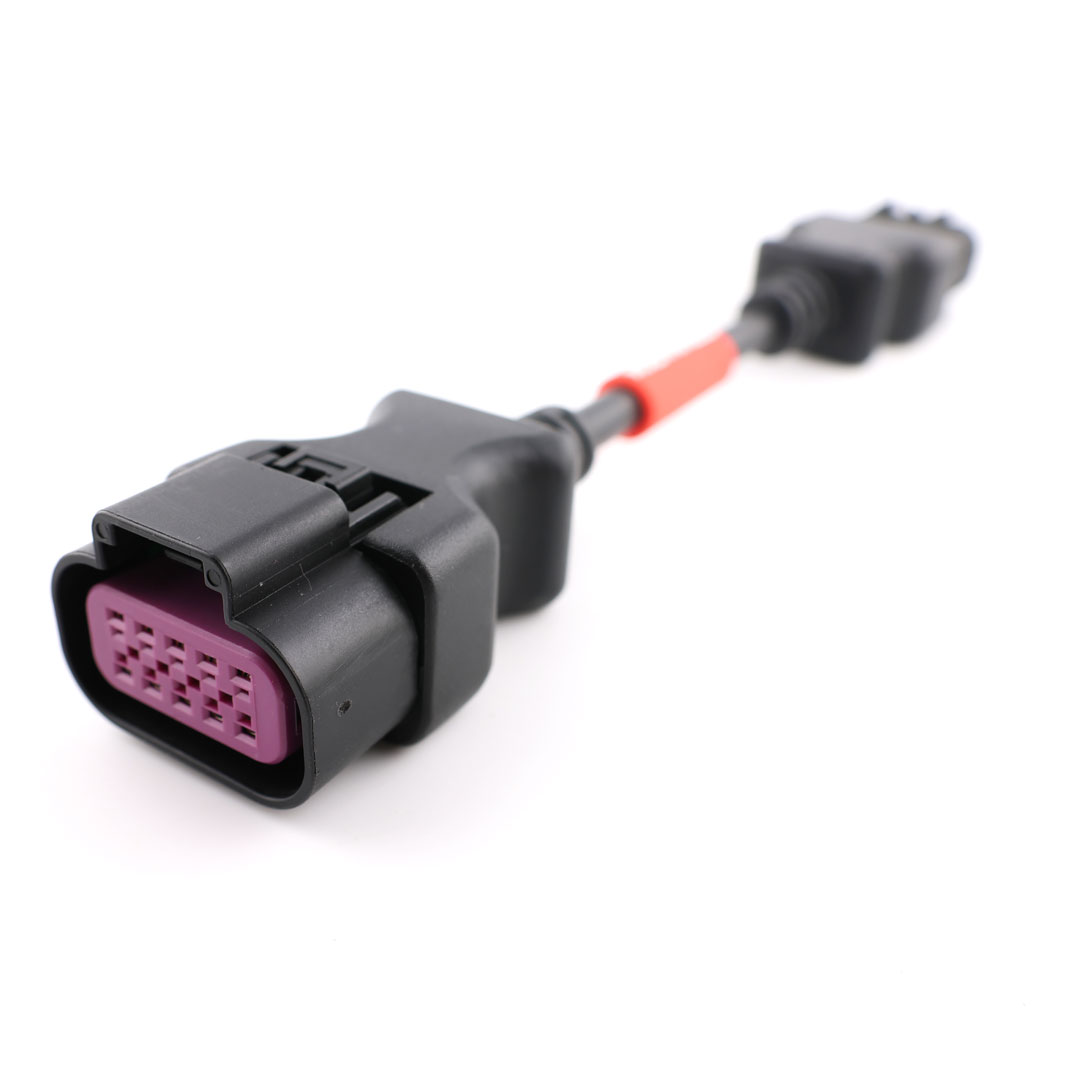

TXB ZERO is supplied in a handy case that contains the necessary cables to operate on the many outboard motors and jet skis present in the IDC6 MARINE diagnostic software, specially developed for this tool and rich in technical data, interactive electrical diagrams, technical sheets, nominal values associated with errors, and much more.

Technical features

MODEL
NAVIGATOR TXB Zero

MANUFACTURER
TEXA S.p.A.

PROCESSOR
ARM Cortex M4 (STM32F439ZIY6)

MEMORY
• SDRAM: 8 MB
• Flash NAND: 4 GB

VEHICLE BATTERY
12Vdc and 24Vdc system management

EXTERNAL POWER SUPPLY
12 / 24 Vdc

WIRELESS CONNECTION
Bluetooth Classic (2.1)

OPERATIONAL BAND
2400 – 2483.5 MHz

MAXIMUM RADIO FREQUENCY POWER TRANSMITTED
4 dBm

DIAGNOSTIC CONNECTOR
OBD ISO15031-03 for 24 V systems

SUPPORTED AUTOMOTIVE BUS TYPES
• 4 HS CAN transceivers connected to OBD pins
3-11, 1-9, 12-13, 6-14 that can be enabled
individually
• 1 J1708 transceiver connected to pins 12-13
• 1 ISO9141-2, ISO14230 transceiver with 60mA
current protection connected to pins 3 or 7

VISIBLE WARNINGS
• Green/red bi-colour LED x1
• Blue LED x1

12 V CONSUMPTION
< 120 mA

24 V CONSUMPTION
< 60 mA

OPERATING TEMPERATURE
0 ÷ 50 °C

STORAGE TEMPERATURE
– 20 ÷ 60 °C

OPERATING MOISTUREESERCIZIO
10% ÷ 80% without condensation

WEIGHT
15 g
