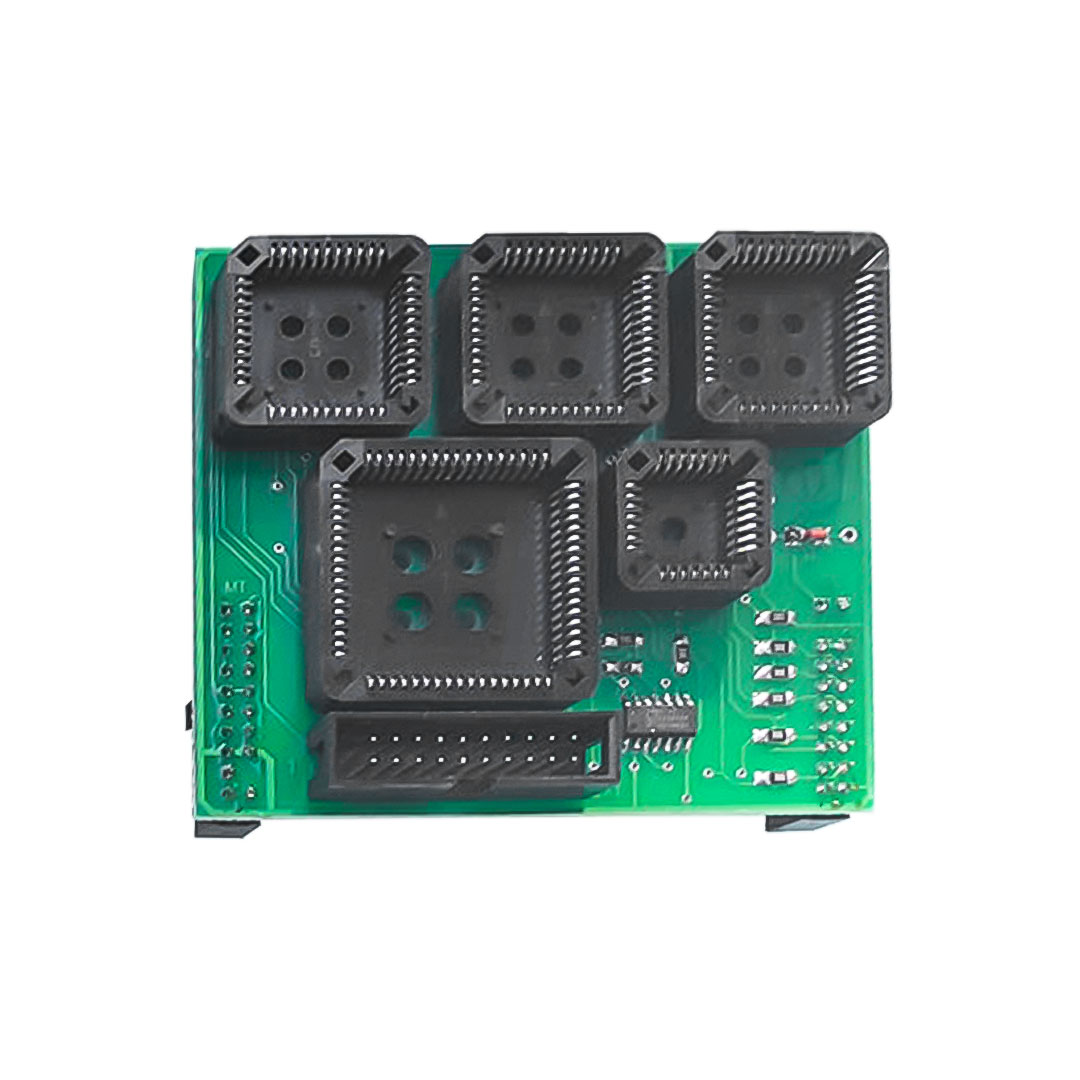

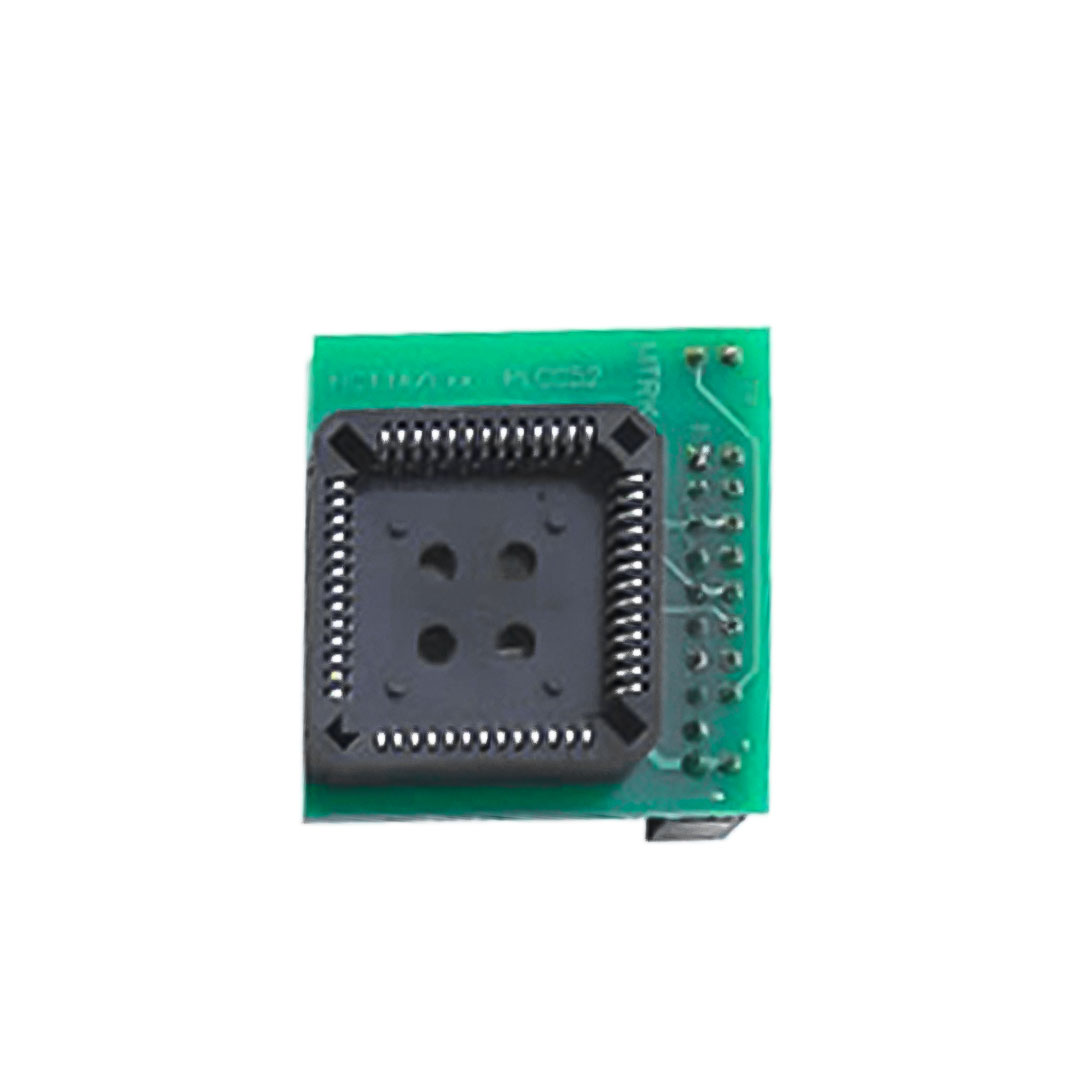

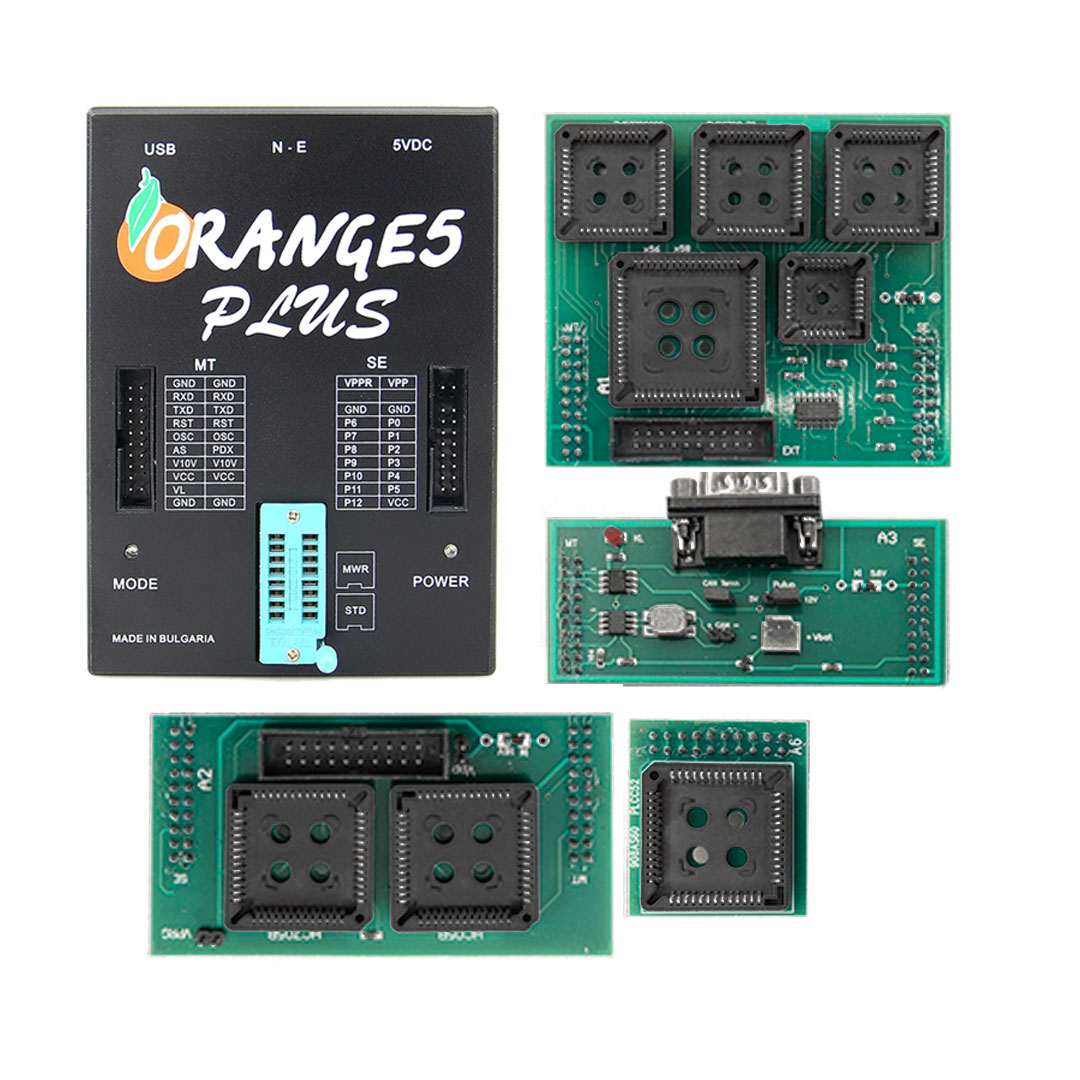

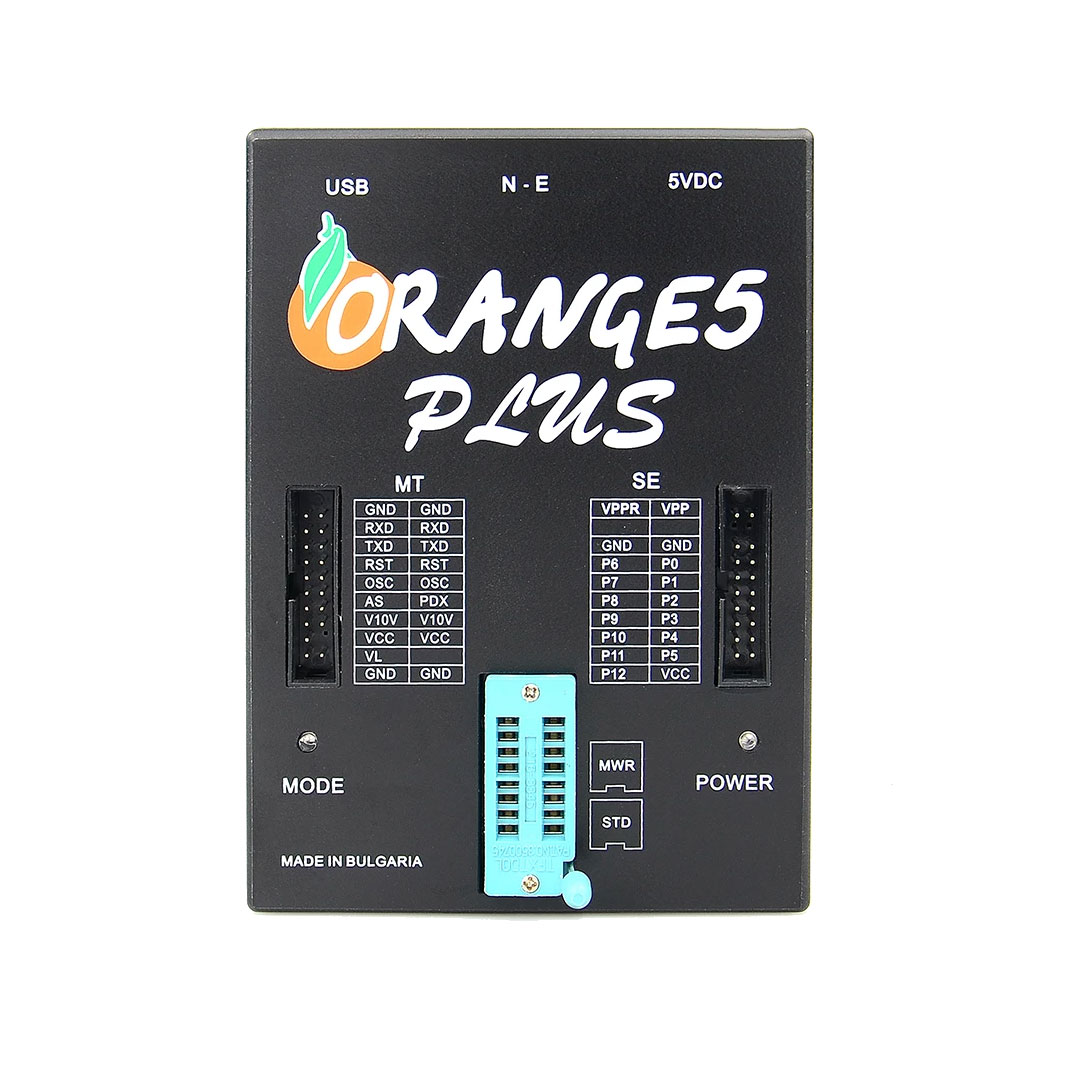

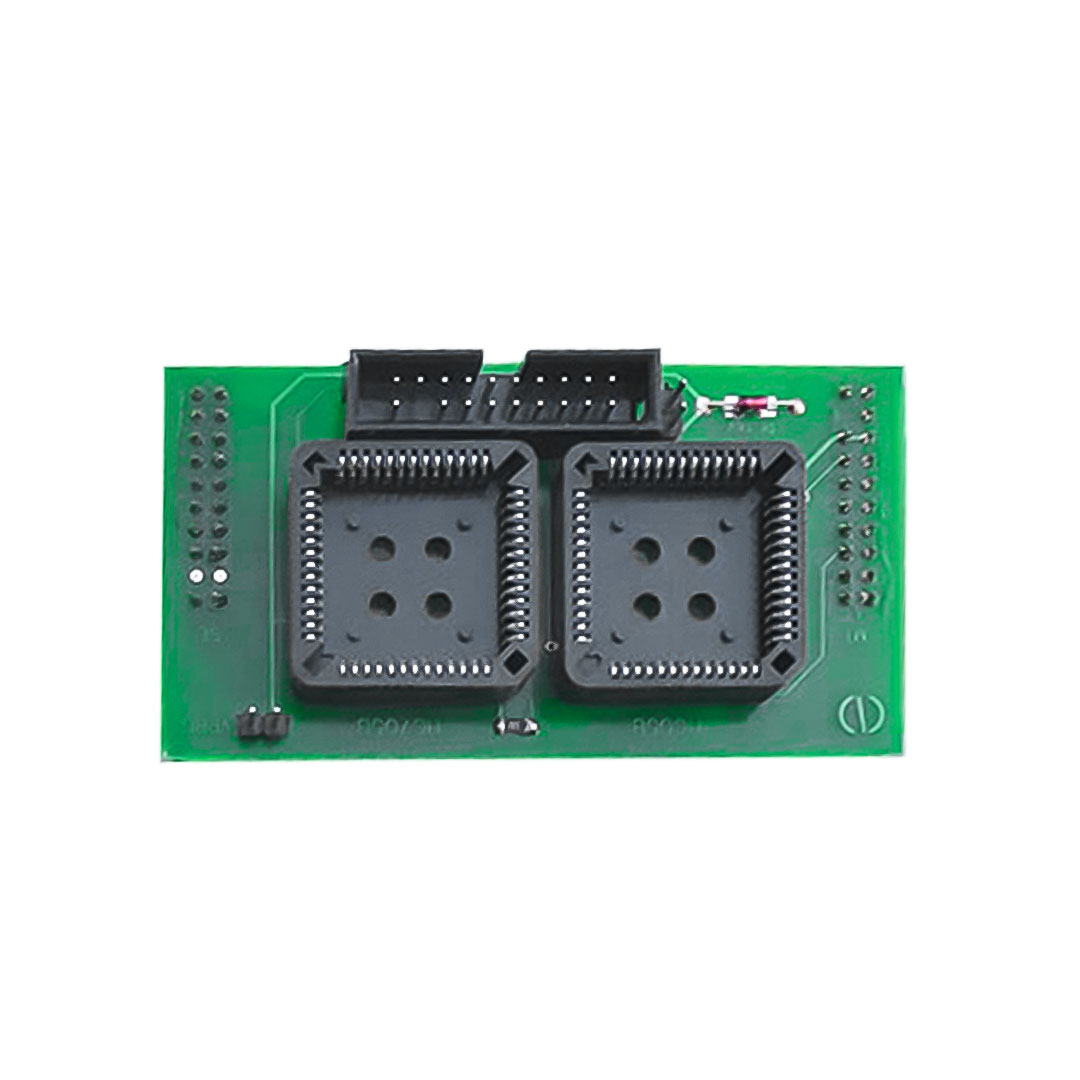

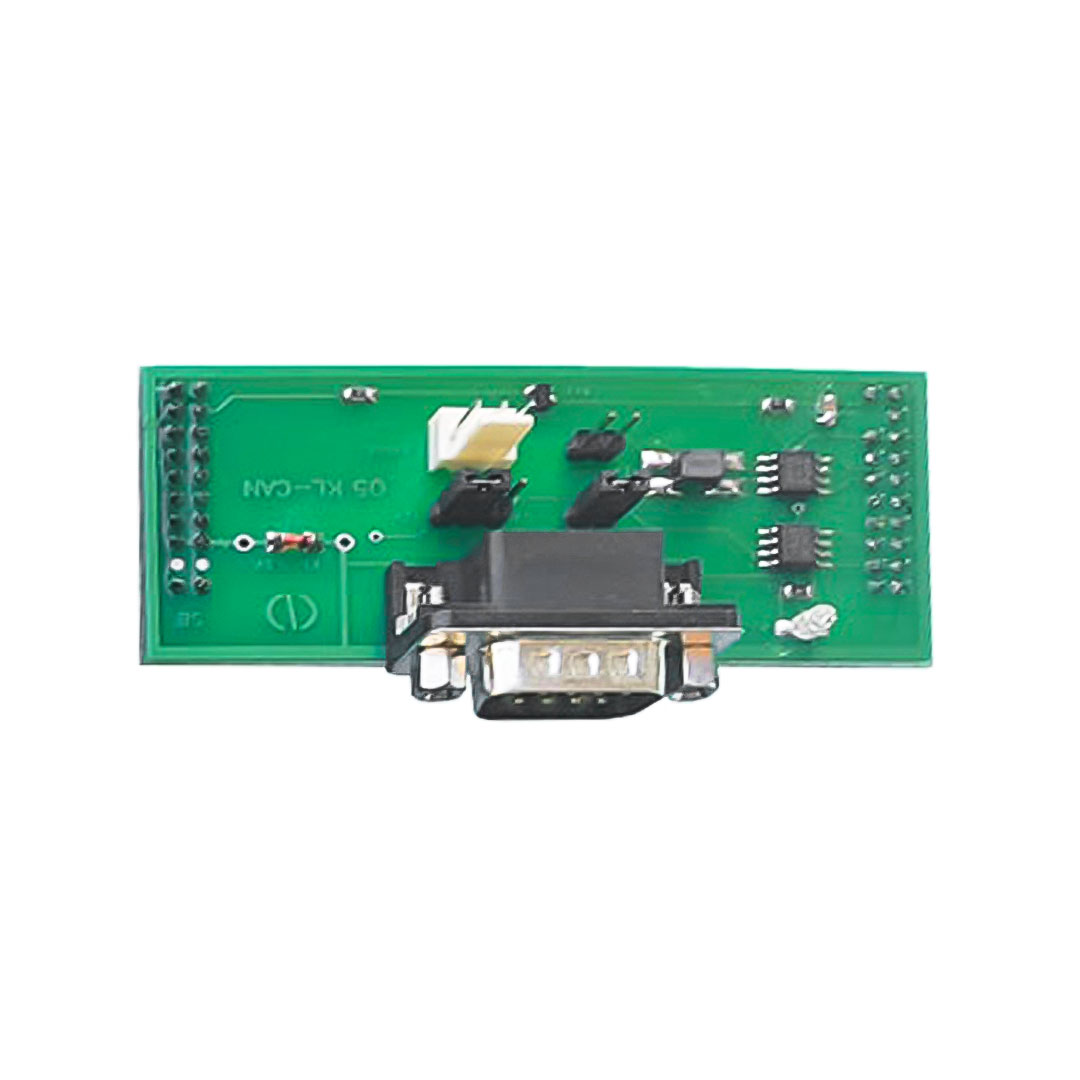

Orange5 ECU Programmer Basic Set Include (HC05B-HC705B) (TMS) (HC11A/EXX-PLCC52) (05 KL-CAN)

Orange5 Programmer Basic Set Include (HC05B-HC705B) (TMS) (HC11A/EXX-PLCC52) (05 KL-CAN)

Orange5 Programmer Basic Set Product Description:

Key Programming Tools From scorpio-lk with Product Number: MK5815
This Weight Product: 350g

Orange5 Programmer Basic Set Specs:

Manufacturer: SCORPIO-LK
Condition: New

Orange5 is a professional programming device for memory and microcontrollers.

Unique feature of the current series programmers is built-in macrolanguage for writing down protocols, which
gives fast and easy capability to add new types of microschemes, precisely meeting manufacturers' requirements to read/write algorithms.

Orange5 Programmer Basic Set Technical Specs:

1. USB power supply (USB2.0/3.0)
2. Universal easy to plug panel ZIF16 for EEPROM
3. Control of contacts in the sockets
4. Two expansions compatible with Orange4 and Omega MTRK
5. Protection against overcurrent
6. Overload voltage protection
7. Two types of power supply: Standard (USB) and enhanced (USB + external power supply)
8. Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V)
9. Additional static 10V for microcontrollers
10. High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
11. Wave cycle generator with frequency ( up to 24 MHz) and out voltage(2.0...5.0V) adjustment.
12. Capability of functional emulation of class CDC USB devices
13. Built-in 32-bit virtual machine
14. Supported interface: I2?, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
15. Programmer is enclosed in a functional box
16. Supported OS: Windows XP / 7 / 8 / 10
