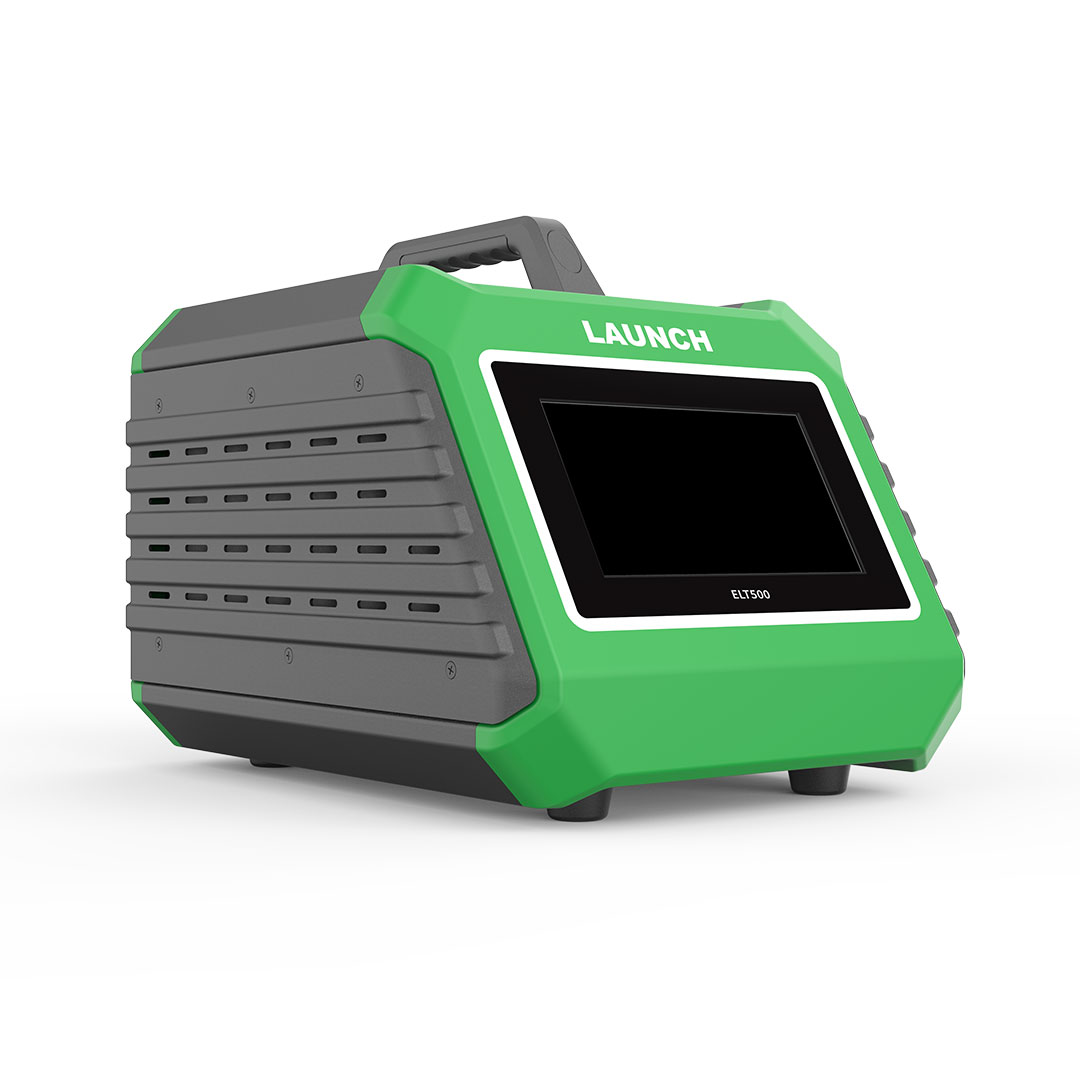

Launch ELT500 EV Battery Pack Airtightness Tester

Be the first to review this product
No IP Restriction
$2,799.00
Category: Automotive Workshop Equipment
Manufacturer: Launch
Availability: In stock
SKU: AUT-LAU-23291
GTIN: 3841614142345
Products specifications
Attribute name Attribute value
Manufacturer Launch
Condition New
Full Description:

Launch ELT500 EV Battery Pack Airtightness Tester

Launch ELT-500 EV Battery Pack Airtightness Tester Description:

New Launch ELT-500 EV Battery Pack Airtightness Tester is non-destructive testing equipment with high precision, which uses compressed air as a medium to apply a certain pressure to the inner cavity or surface of the product to be tested, and then uses a high-sensitivity sensor to detect the pressure changes to determine the tightness of the product.

Battery Service From Launch with Product Number: MK23291
This Weight Product: 12000g

Launch ELT-500 EV Battery Pack Airtightness Tester Features:



1. The 7-inch LCD touch screen and the intuitive menu simplified the operation.

2. High-sensitivity pressure sensing, greatly improving test accuracy and stability.

3. The test process can display the progress time of each stage.

4. Real-time display of pressure dial and display of process pressure curve.

5. The test parameters of standard parts can be preset and used directly, which is convenient and quick.

6. Parameters such as work piece number, volume, pressure, time of each stage, and leakage limit can be preset.

7. Sound and light alarm will be issued when the test is abnormal or failed.



Launch ELT-500 EV Battery Pack Airtightness Tester Specification:


  Power
   20W(Max)
  Test Pressure Range   0~30Kpa
  Sensor Resolution   1Pa
  Test Accuracy   ±5Pa
  Communication Interface   RS485/USB
  Data Storage Method   Internal storage, or data upload to USB drive
  Power Supply   AC 90~265V
  Air Source Requirements   0.1~1.0 Mpa dry compressed air
  Intake Port/Test Port   φ6mm/φ6mm
  Working Temperature/Humidity       -10~55℃/10%~90% @25℃
  Dimension/Weight   280*276*360(mm)/4.5kg
