27% Off

Autel MaxiSYS MS909 Diagnostic Tablet with MaxiFlash VCI/J2534 + Free MaxiVideo MV480 Digital Inspection Videoscope Device

Be the first to review this product

2 Years Update Subscription 1 Year Warranty

$3,099.00

$2,265.00

Category: Diagnostic Tools

Manufacturer: Autel

Availability: In stock

SKU: DIA-AUT-17656

GTIN: 808232918762

Qty:

Products specifications

Products specifications

Attribute name	Attribute value
Manufacturer	Autel
Condition	New

Full Description:

Autel MaxiSYS MS909 Diagnostic Tablet with MaxiFlash VCI/J2534 + Free MaxiVideo MV480 Digital Inspection Videoscope Device 2 Years Update Subscription 1 Year Warranty

Product Description:

Autel MaxiSYS MS909 Diagnostic Tablet with MaxiFlash VCI/J2534 + Free MaxiVideo MV480 Digital Inspection Videoscope Device

Diagnostic Tools From Autel with Product Number: MK17656
This Weight Product: 6850g

Note: 2 Years update subscription is included with the device.
Note: Ip Restriction (works only in India, Middle East and Africa ).

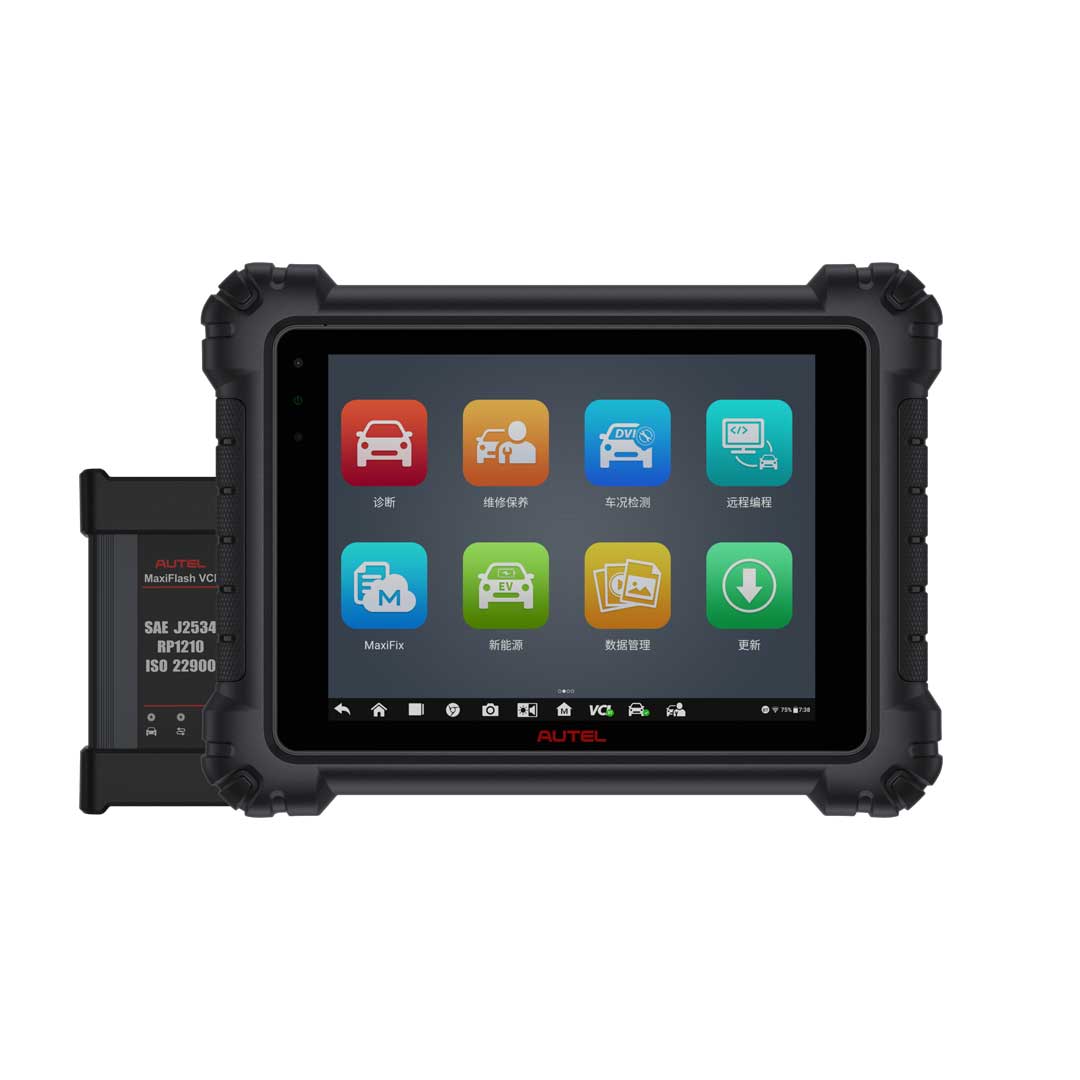

The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.2GHz Quad + 1.8GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations. The MS909 features a rechargeable Lithium battery providing 8 hours of continues use, and front and rear cameras.

Autel MaxiSYS MS909 Highlights:

Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
Automatic system and software updates with real-time push message notifications via internet
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Autel MaxiSYS MS909 DIAGNOSTICS FUNCTIONS:

0 OE-LEVEL COVERAGE US/AS/EU 1996+
AUTOMATIC DETECTION
DTC ANALYSIS & FAULT CODE SOLUTIONS
DTC TROUBLE SHOOTING
LIVE & FREEZE FRAME DATA

Autel MaxiSYS MS909 SERVICE FUNCTIONS

ABS BLEEDING
ESP SENSOR CALIBRATION
BMS (BATTER MONITORING SYSTEM) RESET
OIL RESET
ELECTRIC PARKING BRAKE (EPB)
TIRE PRESSURE MONITORING SYSTEM (TPMS)
BATTERY MANAGEMENT SYSTEM
DIESEL PARTICLE FILTER (DPF)
IMMOBILIZER (IMMO)
STEERING ANGLE SENSOR (SAS)
FUEL INJECTORS CORRECTION
RESET THE HIGH PRESSURE FUEL PUMP LEARNED VALUES
FUEL INJECTORS CORRECTION
LDWS (LANE DEPARTURE WARNING SYSTEM) CAMERA ALIGMENT

…and more

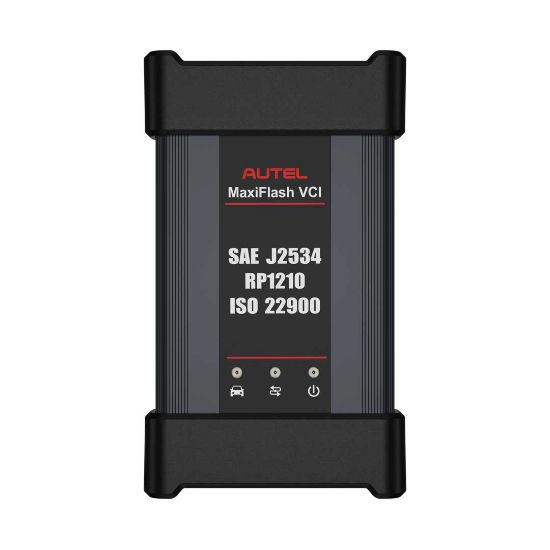

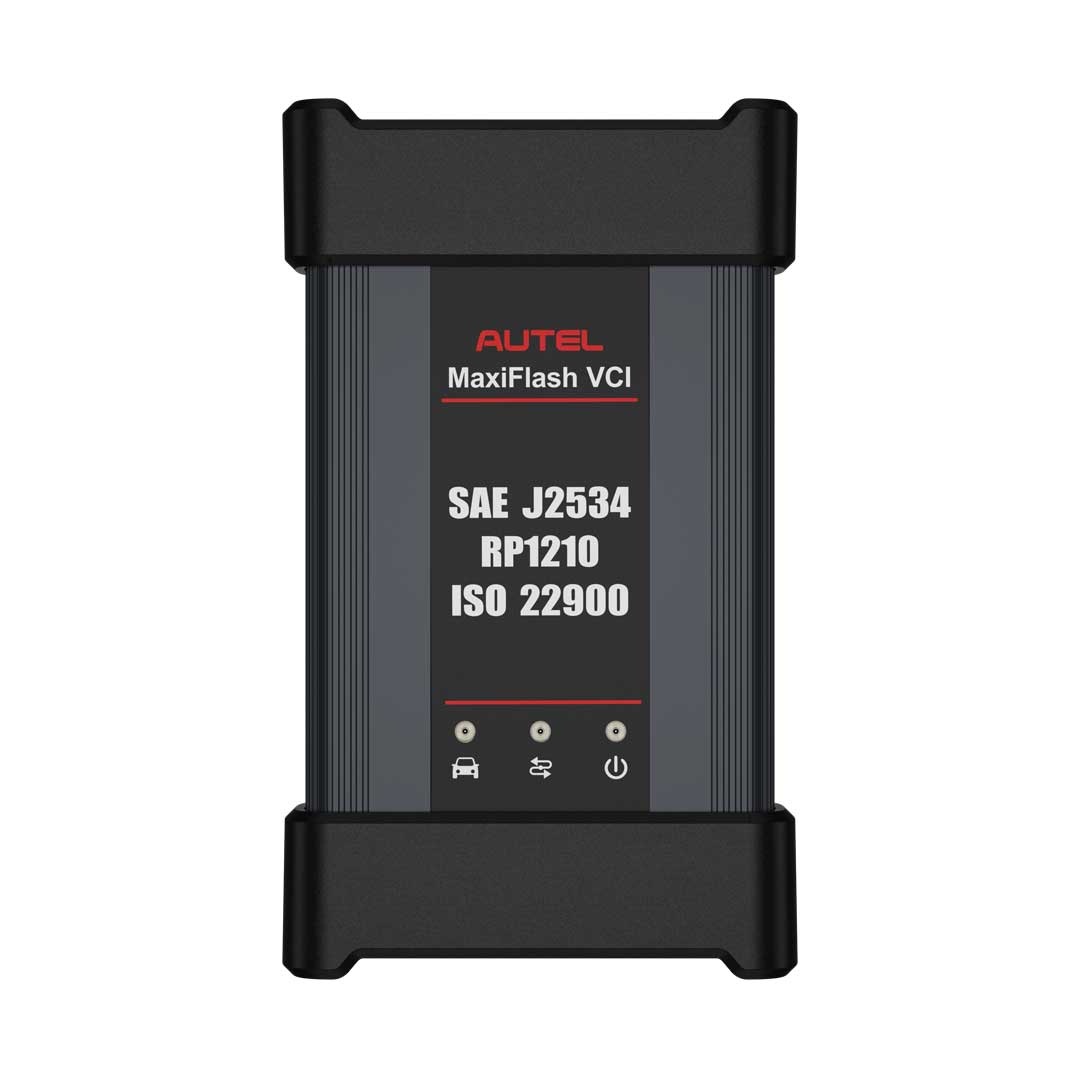

Autel MaxiSYS MS909 MAXIFLASH VCI

PROGRAMMING CAPABILITY

The MaxiFlash VCI device is a D-PDU, SAE J2534 & RP1210 compliant

PassThru programming interface device. Using the updated OEM software, it is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues.

COMMUNICATION CAPABILITY

The MaxiFlash VCI device supports Bluetooth (BT), Wi-Fi, and USB communications. It can transmit vehicle data to the tablet with or without a cable connection. In open areas, the working range of the transmitter through BT communication is up to 328 feet (about 100 m). The working range of 5G Wi-Fi is up to 164 feet (50 m). If the signal is lost due to being taken out of range, communication will be restored once the tablet is within range.

Autel MaxiSYS MS909 Specifications

Operating System	Android 10.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/1.3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2), CAN FD.

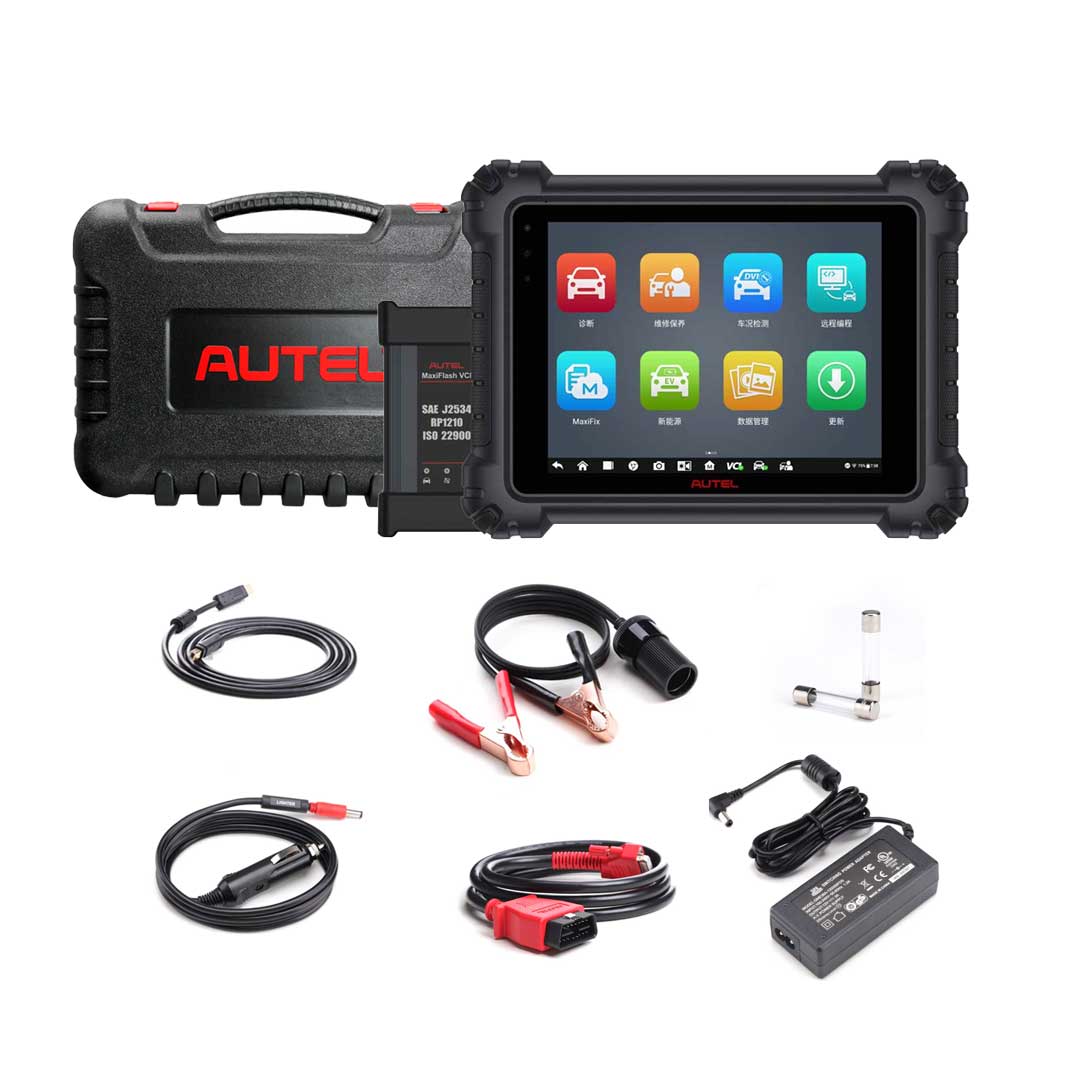

Autel MaxiSYS MS909 Package Content:

1pc x Maxisys MS909
1pc x MaxiFlash VCI

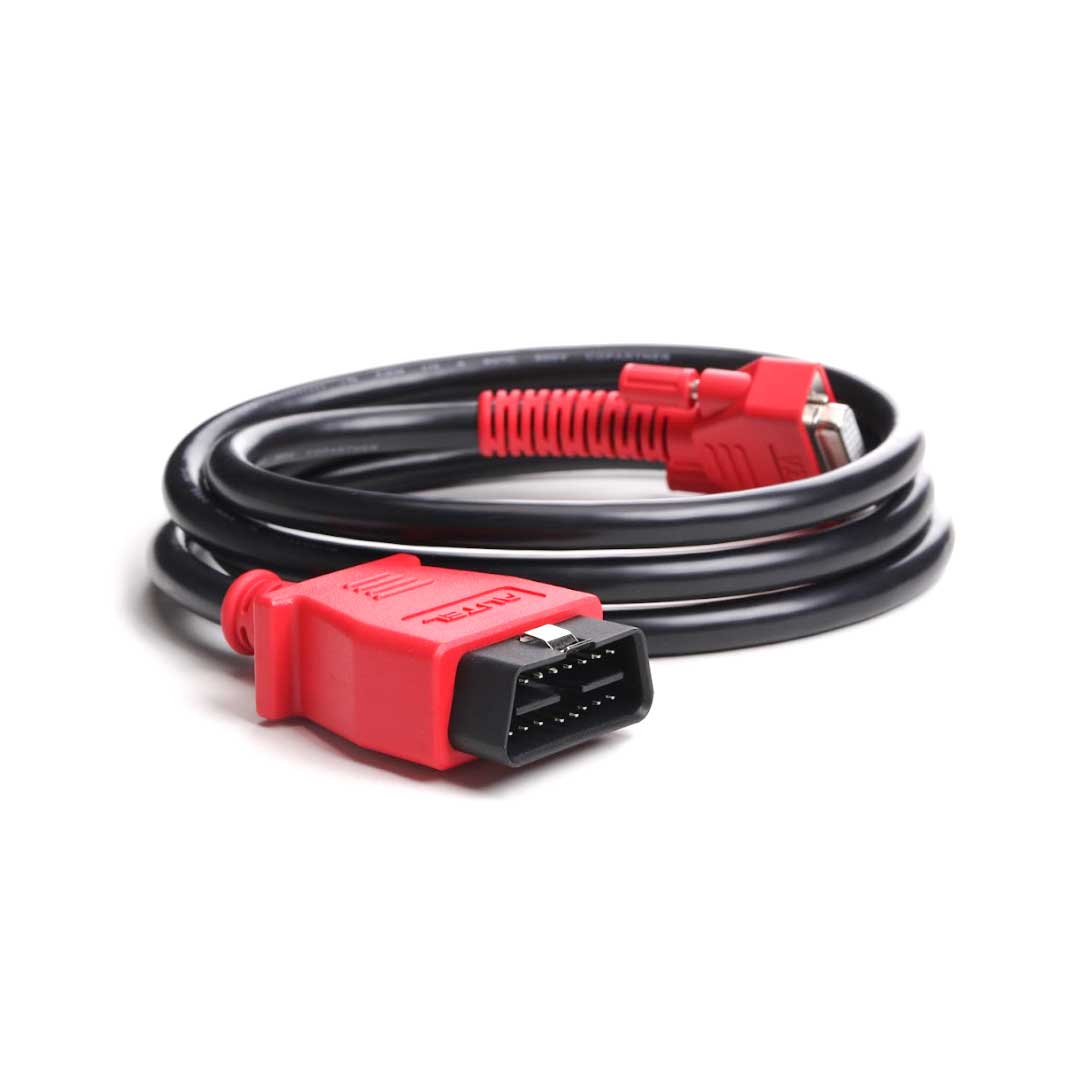

1pc x Main Cable V2.0

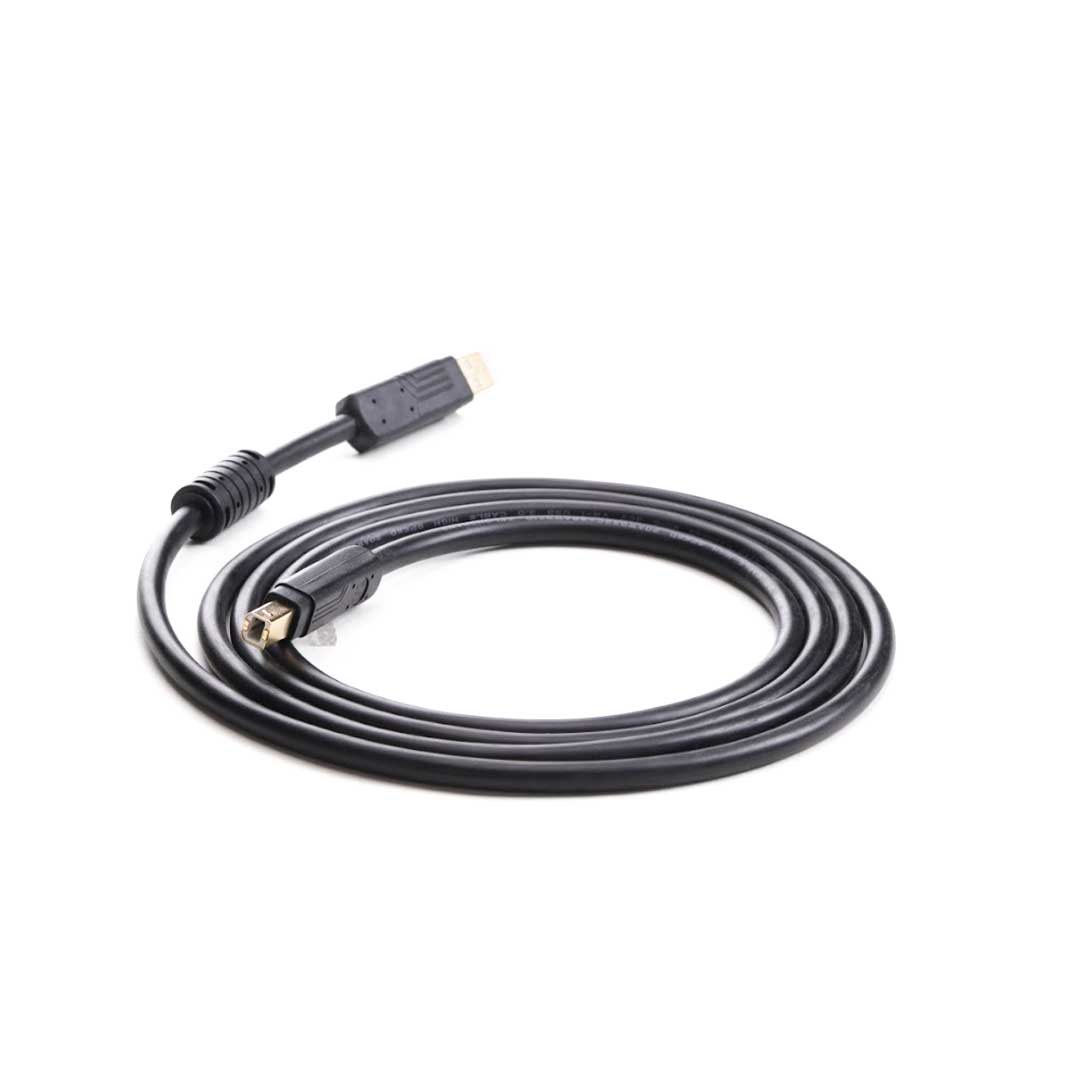

1pc x USB 2.0 Cable V2

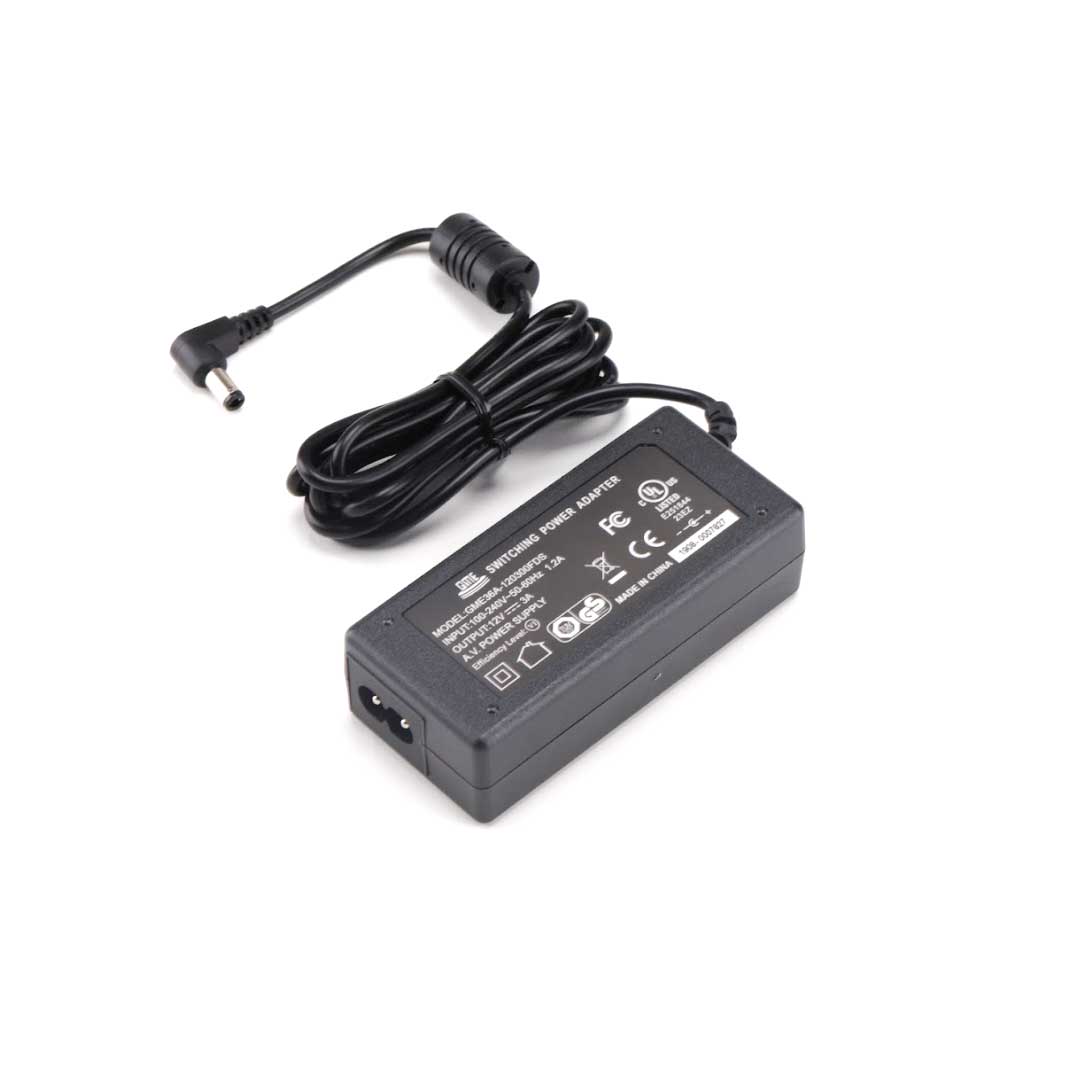

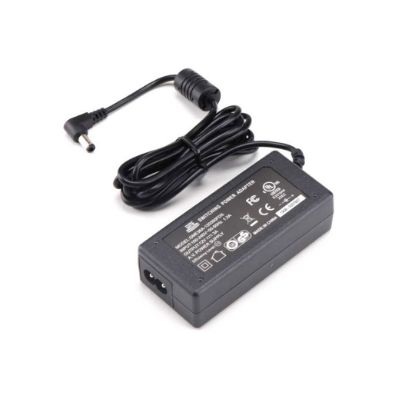

1pc x AC/DC Adapter(12V)

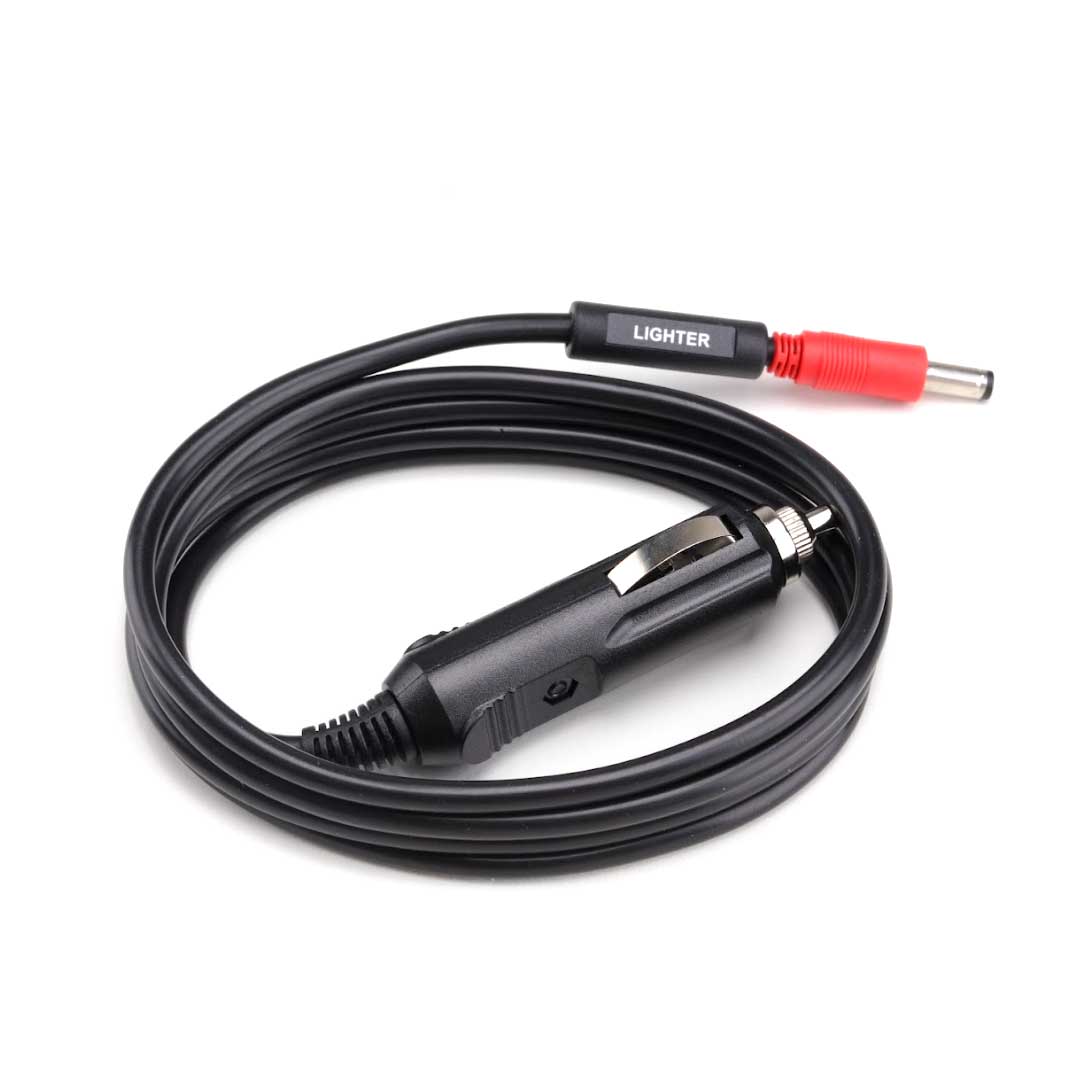

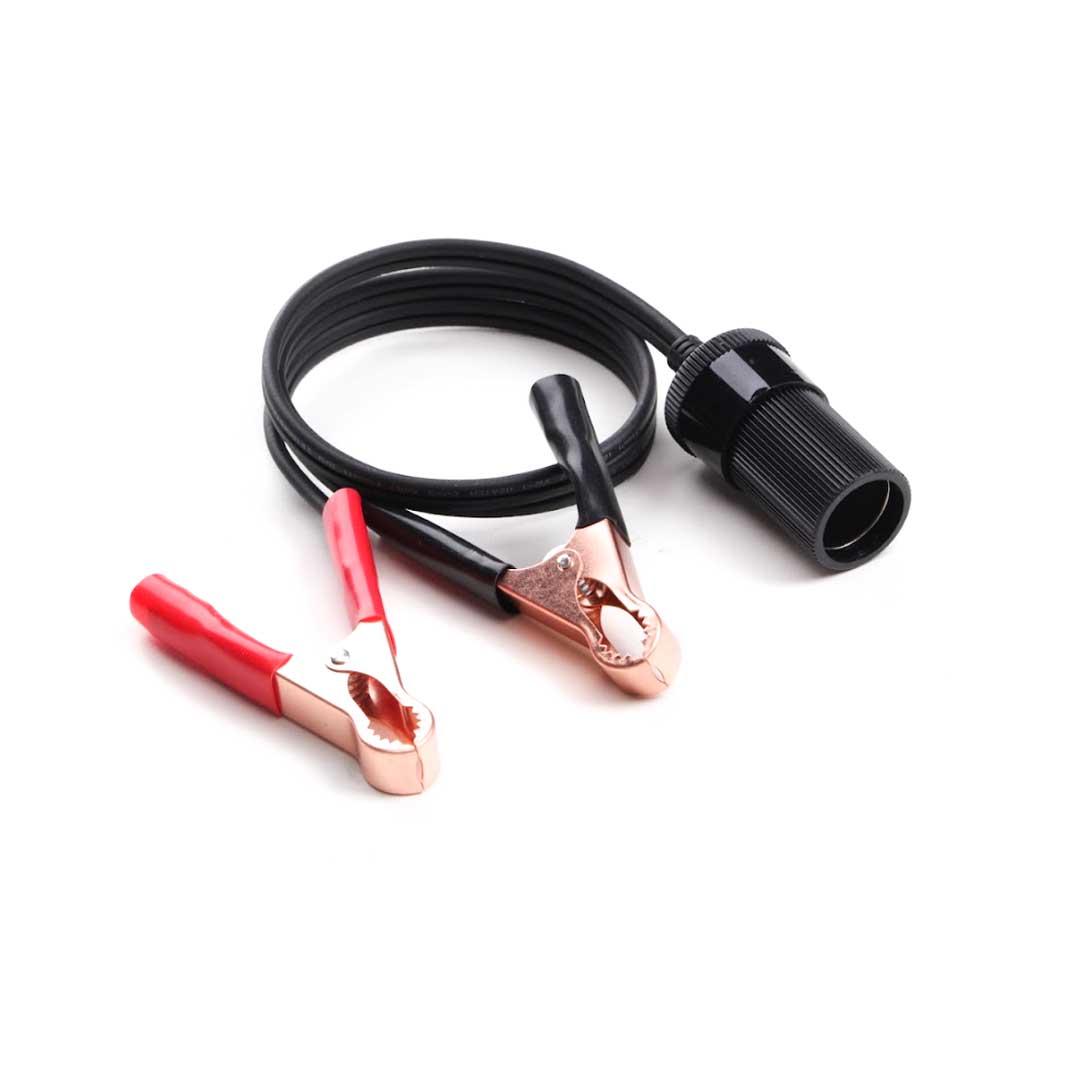

1pc x Cigarette Lighter

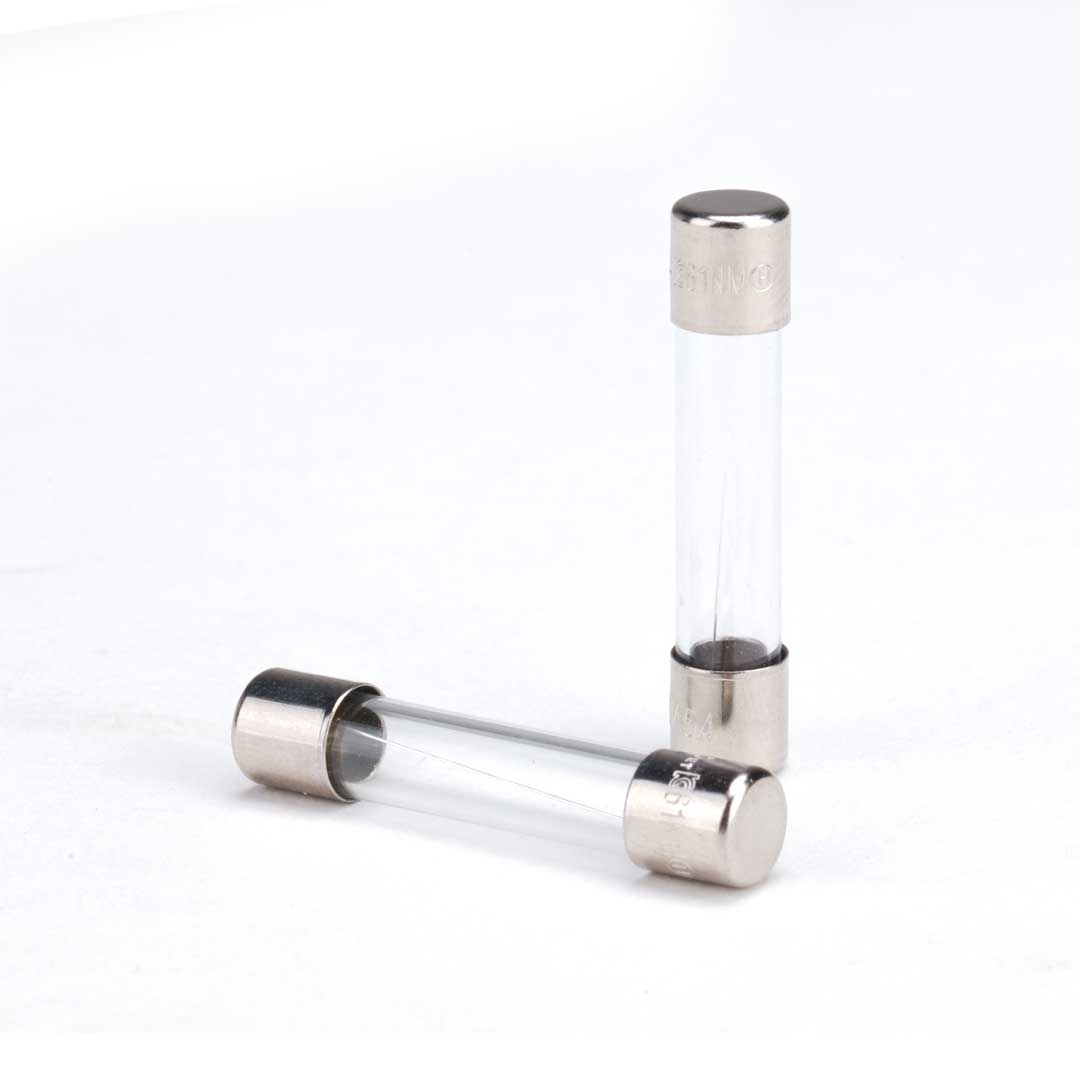

1pc x Light Fuse 6x30mm 2 PCS
1pc x Clipper Cable
1pc x Quick Reference Guide
1pc x Packing List
1pc x Soft Cloth

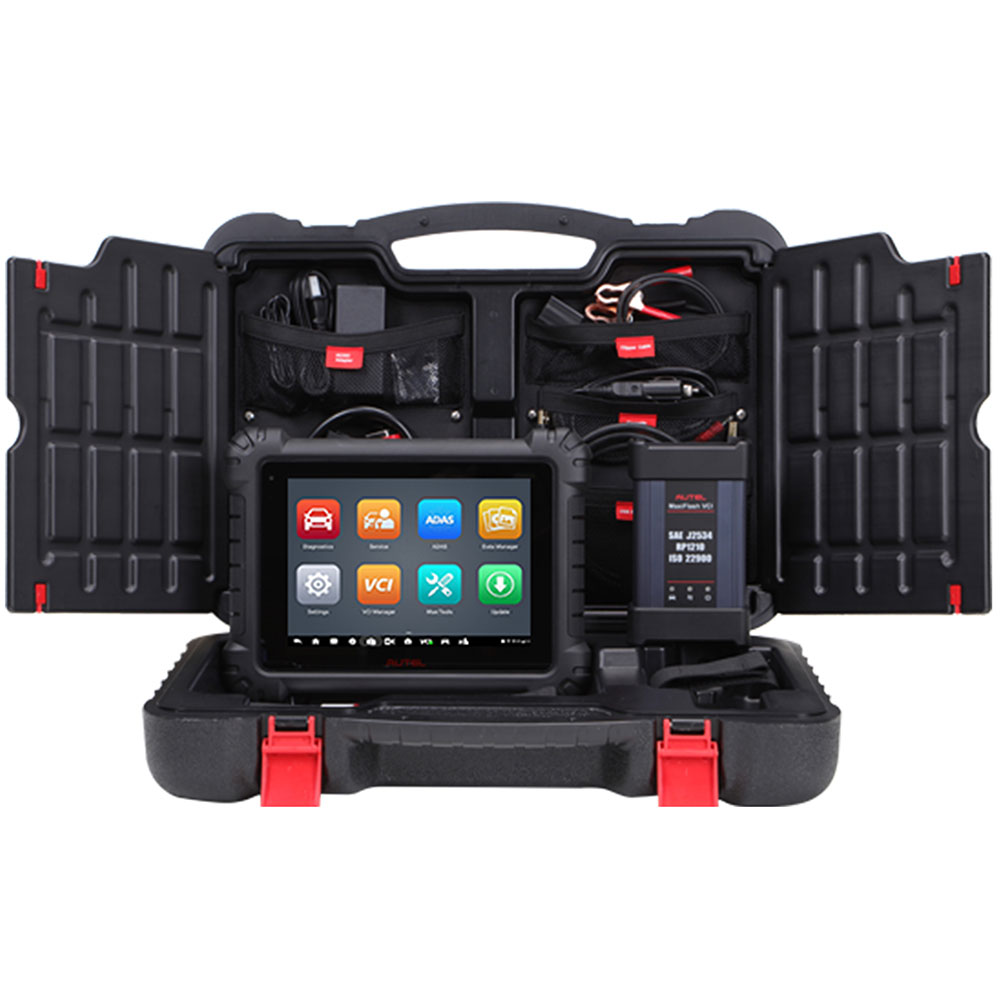

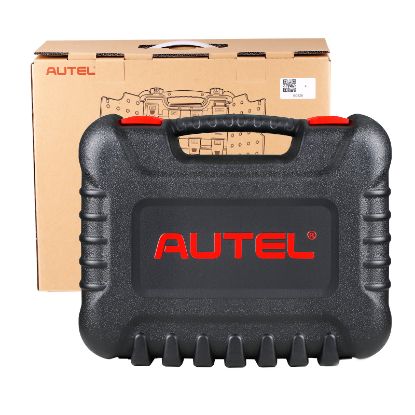

1pc x Carrying Case

New Autel MaxiSYS MS909 Diagnostic Tablet with MaxiFlash VCI/J2534 coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
