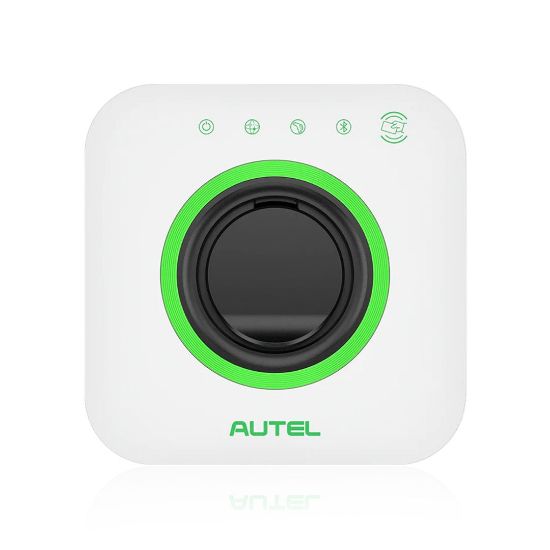

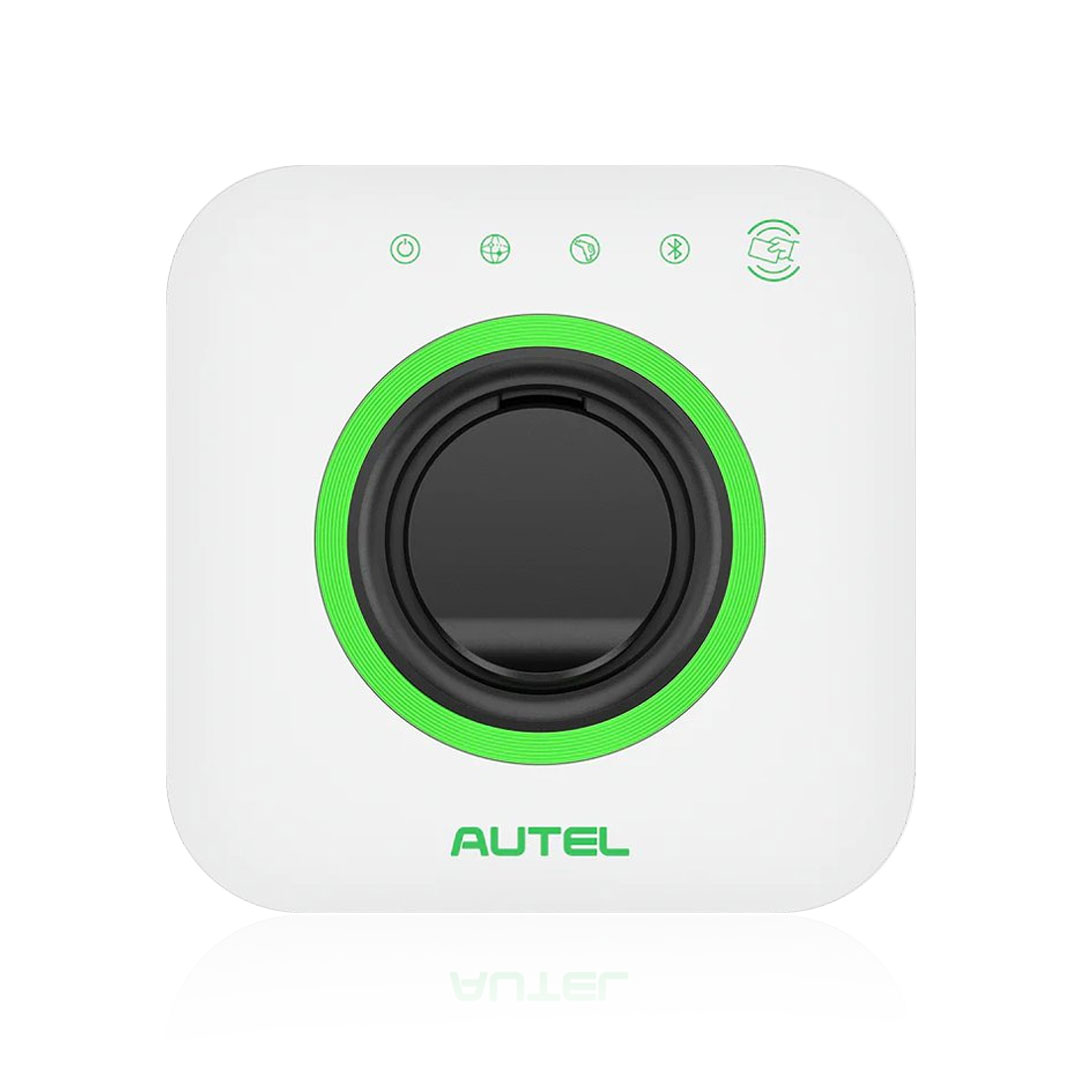

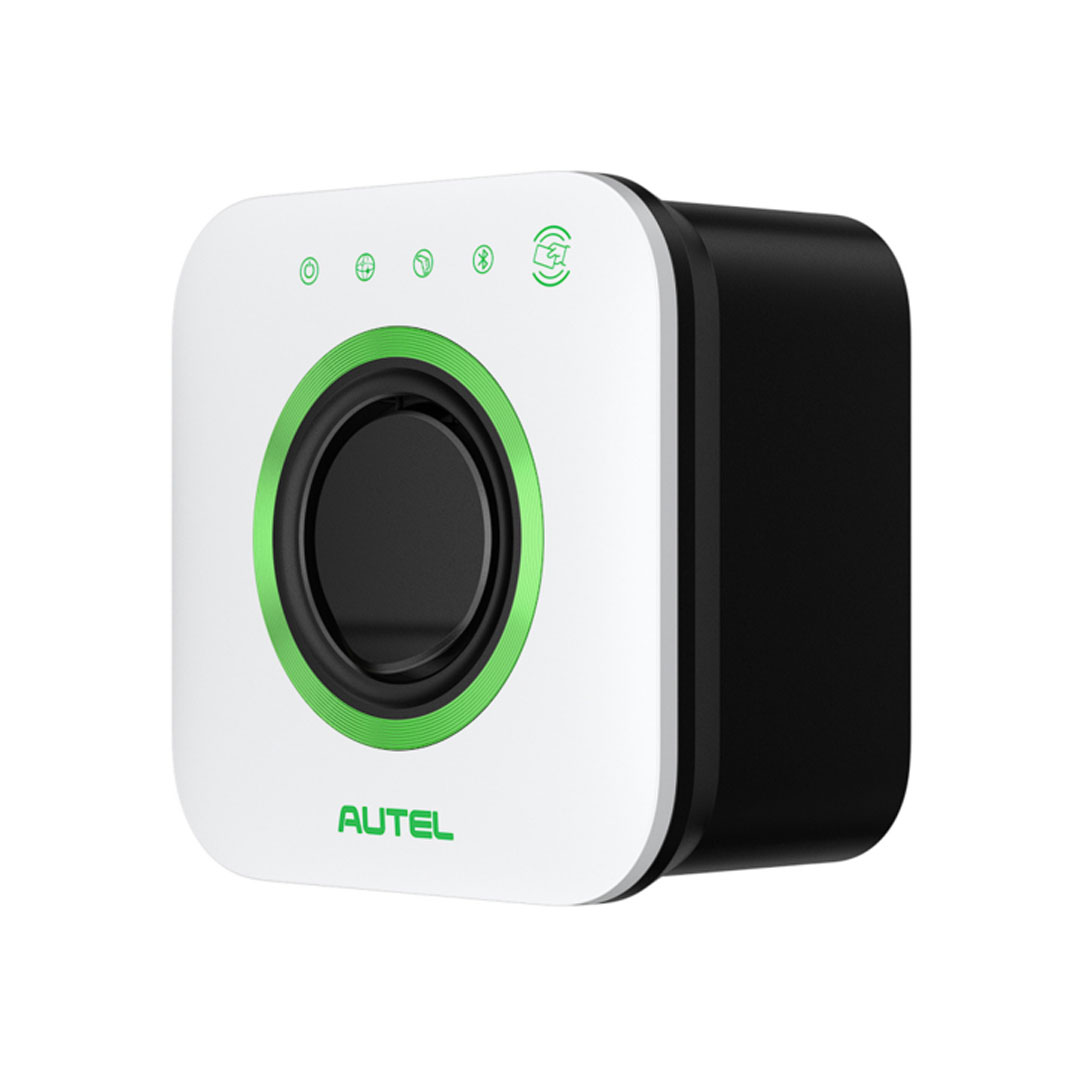

Autel MaxiCharger AC Compact 22kW-WH-Socket

Be the first to review this product

$600.00

Category: EV Chargers

Manufacturer: Autel

Availability: In stock

SKU: EV-AUT-24047

GTIN: 3841624122917

Qty:

Products specifications

Full Description:

New Autel MaxiCharger AC Compact 22kW-WH-Socket It Is Easier Than Ever To Install And Maintain At Lower Costs

EV Chargers From Autel with Product Number: MK24047
This Weight Product: 750g

Charging mode	Mode 3
Input/output power rating and current	Single phase up to 7.4kW/32A; Three phase up to 22kW/32A
Input/output voltage	230V±15%, single phase; 400V±15%, three phase; 50Hz(UK: 230V±10%, single phase; 400V±15%, three phase; 50Hz)
Network type	Single phase 3 Wire – L1, N, PE Three phase 5 Wire – L1, L2, L3, N, PE

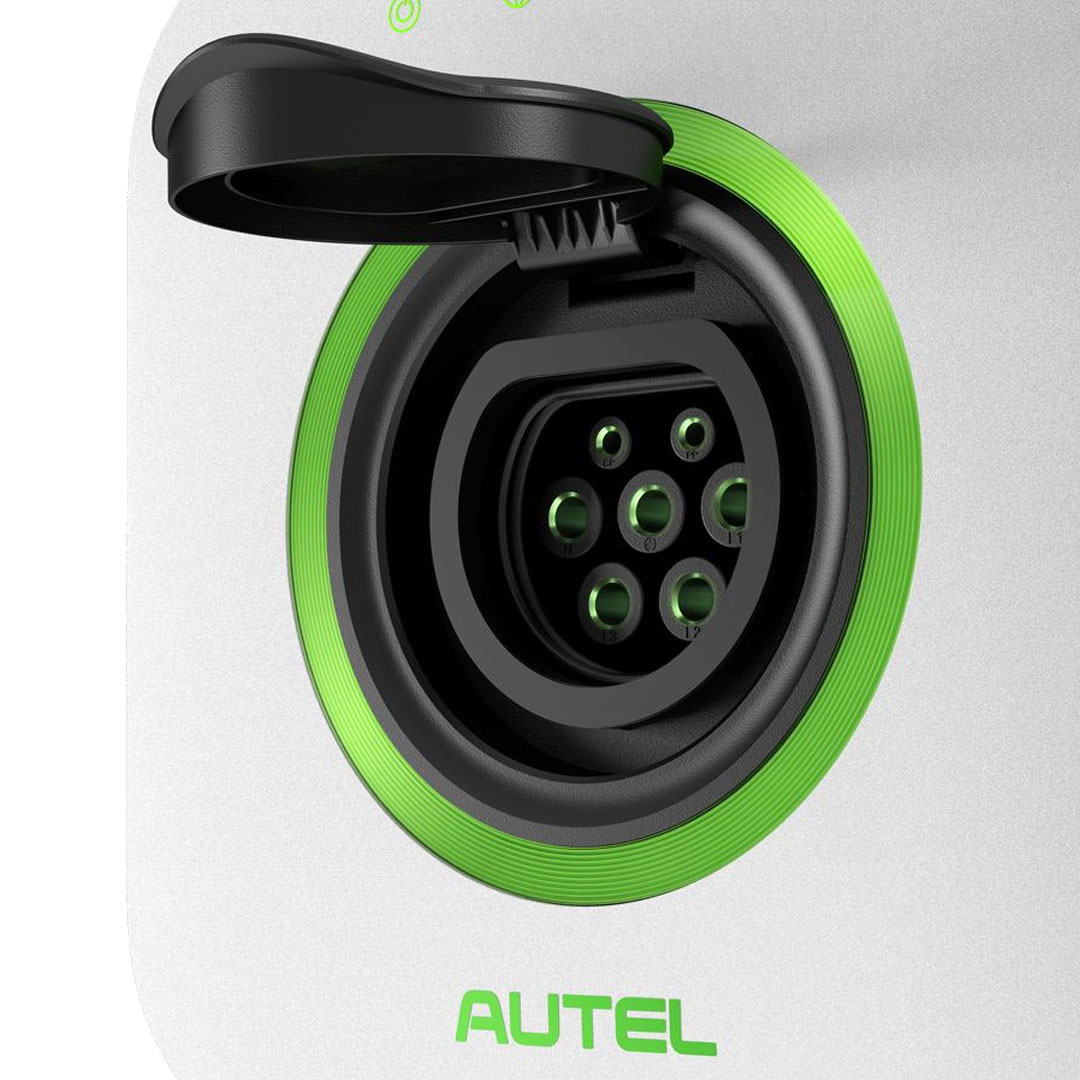

Connector type	IEC 62196 type 2 normal socket
Residual current detection	AC 30mA + DC 6mA
Protection	Overcurrent, overvoltage, undervoltage, integrated surge protection
Card reader (Optional)	ISO 14443
Power measurement accuracy	+/- 2.0%

IP rating	IP54
Operating altitude	2,000 m
Operating temperature range	-30℃~+50℃
Storage temperature range	-40℃~+70℃
Mounting	Wall or floor standing using a pedestal
Dimensions (H × W × D)	202 × 202 × 115 mm

Status display	LED/APP
User interface	Autel Charge APP; Autel Charge Cloud
Connectivity	Bluetooth, Wi-Fi, Ethernet, RS485, 4G, Modbus TCP/IP
Communication protocols	OCPP 1.6J
User authentication	APP, AutoStart, RFID card
Software update	OTA updates via web portal
